Item
|

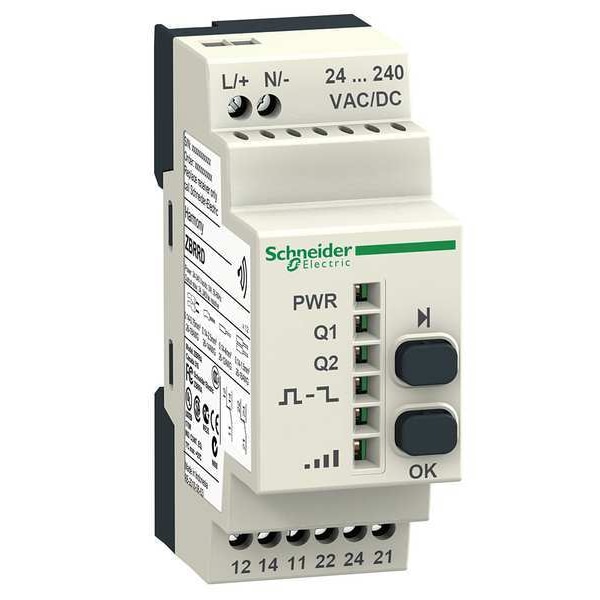

Programmable Receiver
|
|
For Use With
|
Harmony Series
|
|
Features
|
Mechanical durability 1,000,000 cycles, 24-240 V AC/DC, 2 push buttons, 6 LEDs
|
|
Power Rating
|
4W
|
|
Voltage
|
24 to 240V AC/DC
|
|
Includes
|
Status LEDs
|
|
Material
|
Plastic
|
|
Standards
|
CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
|
|
Overvoltage Category
|
II IEC 60664-1
|
|
Switching Capacity In Va
|
1250 VA
|
|
Housing Material
|
self-extinguishing plastic
|
|
Vibration Resistance
|
+/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
|
|
Max Power Consumption In W
|
1 mW
|
|
Operating Position
|
any position without derating
|
|
Maximum Power Consumption In W
|
4 W AC/DC
|
|
Electrical Connection
|
1 conductor cable 0.14-2.5 mm² - AWG 26 to AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm² - AWG 26 to AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26 to AWG 16 - flexible - with cable end IEC 60947-1
|
|
Product Certifications
|
CCC || UL || GOST || CSA || C-tick
|
|
Response Time
|
< 30 ms after transmitter clicks
|
|
Ip Degree Of Protection
|
IP20 IEC 60529 casing) || IP20 terminals)
|
|
Insulation Resistance
|
> 500 MOhm 500 V DC NF C 20-030
|
|
Output Contacts
|
2 C/O
|
|
Shock Resistance
|
10 gn 16 ms) 6000 shocks IEC 60068-2-27
|
|
Transmission Frequency
|
2405 MHz
|
|
Radio Agreement
|
RSS || SRRC || ANATEL || ARIB T66 || FCC || ICASA
|
|
Electromagnetic Compatibility
|
immunity for industrial environments EN/IEC 61000-6-2 || conducted and radiated emissionsclass B CISPR 22 || electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 to 2000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 3 V/m 80 to 2700 MHz, distance = 20 m) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV power supply wires) IEC 61000-4-4 || 1.2/50µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 || conducted RF disturbances 10 V IEC 61000-4-6 || immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11 || radiated emission ETSI EN 300 440-1 || conducted emission EN 300-489-1 || conducted emission ETSI EN 300 489-3 || radiated emission ETSI EN 300 440-2
|
|
Nominal Output Current
|
0.3 A 48 V DC EN/IEC 60947-5-1 || 3 A 24 V DC UL 508 || 1.5 A 240 V AC EN/IEC 60947-5-1 || 3 A 120 V AC EN/IEC 60947-5-1 || 3 A 240 V AC UL 508 || 3 A 24 V DC CSA C22.2 No 14 || 3 A 240 V AC CSA C22.2 No 14
|
|
Tightening Torque
|
0.5-1 N.m EN/IEC 60947-1
|
|
Output Type
|
2 relays
|
|
Maximum Switching Voltage
|
250 V AC/DC
|
|
Electrical Durability
|
100000 cycles
|
|
[Uimp] Rated Impulse Withstand Voltage
|
4 kV
|
|
Level Or Class
|
5M00G7W
|
|
Time Delay Range
|
0.5 s - 15 to 15 %)
|
|
Pollution Degree
|
2 IEC 60664-1
|
|
Device Short Name
|
ZBRRD
|
|
Mechanical Durability
|
1000000 cycles
|
|
Maximum Sensing Distance
|
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
|
|
Communication Port Protocol
|
Zigbee green power 2.4 GHz IEEE 802.15.4
|
|
[Ui] Rated Insulation Voltage
|
250 V IEC 60664-1
|
|
Rated Short-Duration Power Frequency Withstand Voltage
|
1.5 kV 50 Hz EN/IEC 60947-5-1
|
|
Ambient Air Temperature For Storage
|
-40-70°C
|
|
Product Or Component Type
|
programmable receiver
|
|
Short-Circuit Protection
|
0.4 A fuse fast blow
|
|
Input Output Isolation
|
galvanic isolation
|
|
Antenna Gain
|
0 dBi
|
|
Breaking Capacity
|
750 VA, 15 W
|
|
Antenna Type
|
omnidirectional
|
|
Reset Time
|
2 ms time delay
|
|
Number Of Channels
|
1
|
|
Status Led
|
1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
|
|
Control Circuit Frequency
|
50 to 60 Hz +/- 10 %
|
|
Relative Humidity
|
90-90 % -20-55°C, without condensation ETSI EN 300 440-1
|
|
Marking
|
CE
|
|
[Us] Rated Supply Voltage
|
24 to 240 V AC/DC 50/60 Hz - 10 to 10 %
|
|
Surge Withstand
|
1 kV differential mode IEC 61000-4-5 || 2 kV common mode IEC 61000-4-5
|
|
Modulation Technique
|
O-QPSK
|
|
Utilisation Category
|
AC-15 : B300 EN/IEC 60947-5-1 || DC-12 EN/IEC 60947-5-1
|
|
Maximum Switching Current
|
5 mA AC/DC
|
|
Mounting Support
|
35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate
|
|
Product Specific Application
|
interface to actuators
|
|
Function Of Module
|
bi-stable || monostable
|
|
Compatible with Series
|
XB4R, XB5R
|
|
Compatible Product Type
|
Push Buttons, Wireless Push Buttons
|
