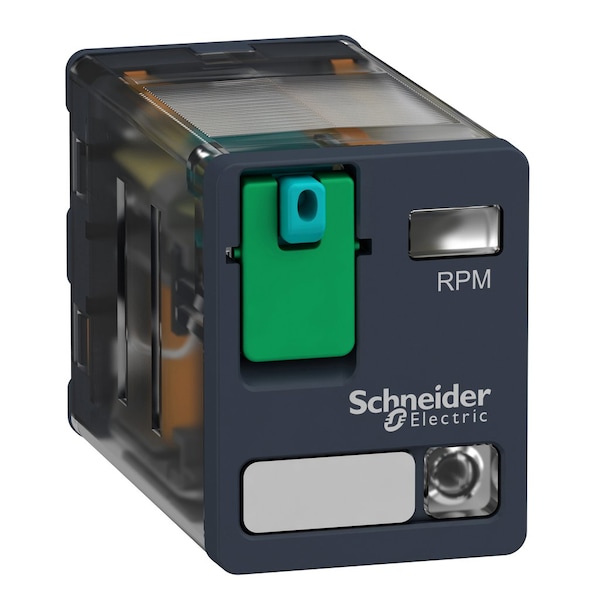

Power plug-in relay, 15 A, 2 CO, with LE, 110V DC Coil Volts, 2 C/O

Mfr # RPM22FD
Zoro # G400905650

$10.69

Sold in multiples of 10 for $106.90

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 110V DC
AC Contact Rating - Relay 15A @ 250V AC
DC Contact Rating - Relay 15A @ 28V DC
Contact Form - Relay 2 C/O
Power Consumption - Relay 0.85 W

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RPM22FD
Zoro # G400905650
Country of Origin China
Category Plug-In Relays

Details

Item	Power plug-in relay,15 A,2 CO,with LE
Coil Volts	110V DC
AC Contact Rating - Relay	15A @ 250V AC
DC Contact Rating - Relay	15A @ 28V DC
Contact Form - Relay	2 C/O
Power Consumption - Relay	0.85 W
Contact Material	AgNi
Features	Lockable Test Button; Status LED
Standards	CSA C22.2 No 14; EN/IEC 61810-1; UL 508; EAC
Switching Voltage	250 V IEC
Current Rating	15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC
Operating Time	20 ms at nominal voltage
Operating Temp. Range	-40-55°C
Coil Resistance	13440 Ohm
Pin Shape	flat
Dielectric Strength	1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Switching Power	Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Protection Category	RT I
Series	RPM; Power
Minimum Switching Capacity	170 mW 10 mA, 17 V
Rated Operational Voltage Limits	88...121 V DC
[Ithe] Conventional Enclosed Thermal Current	15 A -40-55°C
Ambient Air Temperature For Operation	-40-55°C
[Uc] Control Circuit Voltage	110 V DC
Mechanical Durability	10000000 cycles
Range of Product	Harmony Electromechanical Relays
Operating Rate	<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Device Presentation	complete product
Drop-Out Voltage Threshold	>= 0.1 Uc DC
Product or Component Type	plug-in relay
Ip Degree of Protection	IP40 conforming to IEC 60529
Device Short Name	RPM
Control Type	lockable test button
Operating Position	any position
Maximum Switching Capacity	3750 VA, 420 W
Electrical Durability	100000 cycles resistive
Utilisation Coefficient	0.2
[Ie] Rated Operational Current	15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50µs
Pollution Degree	3
Test Levels	level A group mounting
Series Name	Power
Status Led	with
Shock Resistance	15 gnin operation, 30 gnnot operating
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
Ambient Air Temperature For Storage	-40-85°C
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Load Current	15 A 250 V AC, 15 A 28 V DC
Average Resistance	13440 Ohm at 20°C +/- 10 %
