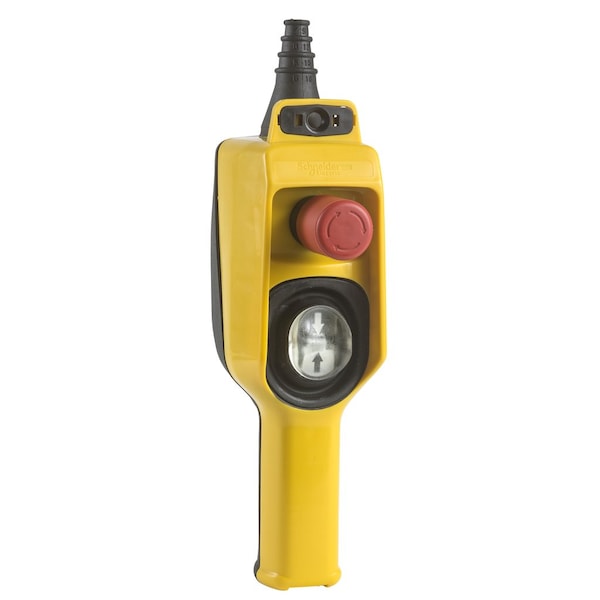

Pendant control station, Harmony XAC, plastic, yellow, 1 2 directional push button, 1 emergency stop

Mfr # XACD22A0105
Zoro # G7684351

$161.82

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Contact Form 1 NC + 1 NO
Legend reversing
Type of Operator double insulated
Contact Rating slow-break
Standards CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, EN/IEC 60204-32

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XACD22A0105
Zoro # G7684351
Country of Origin France
Category Push Button Control Stations

Details

Item	Pendant station XAC-D - 1 rocker lever 1
Contact Form	1 NC + 1 NO
Legend	reversing
Type of Operator	double insulated
Contact Rating	slow-break
Standards	CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, EN/IEC 60204-32
Mechanical Interlock	with mechanical interlocking
Operator Color	yellow
Cable Entry	rubber sleeve with stepped entry 7-18 mm
Application	control of single speed hoist motor
IP Rating	IP65 conforming to IEC 60529
Enclosure Material	polypropylene
Voltage	600 V
Terminal Connection	screw clamp terminal
Terminal Identifier	(11-12)NC, (13-14)NO
Ik Degree of Protection	IK08 conforming to EN 50102
Mechanical Interlocking	with mechanical interlocking
Overvoltage Category	class II IEC 61140
Ambient Air Temperature For Storage	-40-70°C
Short-Circuit Protection	10 A fuse protection cartridge gG
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Protective Treatment	TH
Control Type	intuitive
Operating Force	16-16 N
Rated Operational Power In W	40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Contact Operation	slow-break
Ip Degree of Protection	IP65 conforming to IEC 60529
Range of Product	Harmony XAC
Control Station Composition	1 2-directional button + 1 emergency stop
Connections - Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Control Station Type	double insulated
Shock Resistance	70 gn IEC 60068-2-27
Product Compatibility	ZB2BE102 for emergency stop, ZB2BE102 + ZB2BE101 for each direction
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
[Ithe] Conventional Enclosed Thermal Current	10A
Terminals Description Iso N°2	(11-12)NC
Motor Starter Type	reversing
Terminals Description Iso N°1	(13-14)NO, (11-12)NC
Control Button Type	stop push-button Ã˜ 30 mm 1 NC latching, first direction button 1 NC + 1 NO raise, slow, second direction button 1 NC + 1 NO lower, slow
Electrical Circuit Type	control circuit
Product or Component Type	pendant control station
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Ambient Air Temperature For Operation	-25-70°C
Mechanical Durability	3000000 cycles
Control Station Colour	yellow
Maximum Resistance Across Terminals	25 MOhm
Device Short Name	XACD
Enclosure Type	complete ready for use
Control Station Application	control of single speed hoist motor

Description

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylne enclosure with one 2-directional operator, reversing, and mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
