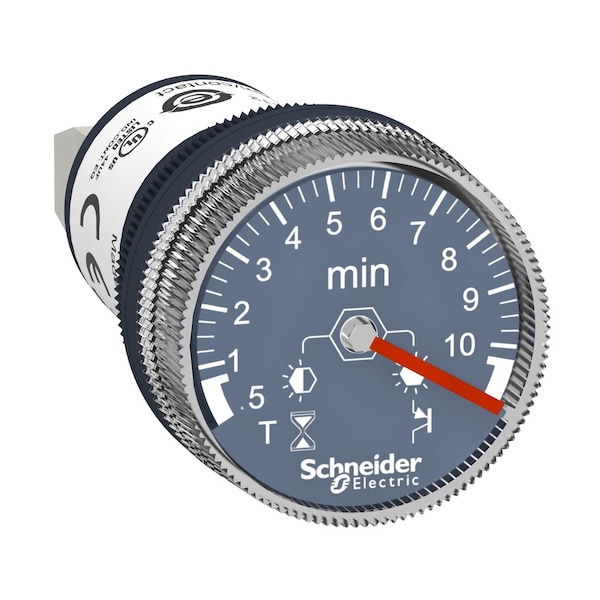

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10min, 24V DC

Mfr # XB5DTB24
Zoro # G900905358

$36.59

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards UL 508, IEC 61812-1
Thickness 1-6 mm
Height 62 mm
Minimum Switching Current 10 mA
Power Consumption In W 1 W

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB5DTB24
Zoro # G900905358
Country of Origin France
Category IEC Timer Modules

Dimensions

Height	62 mm
Diameter	29 mm
Mounting Diameter	22 mm

Details

Item	Panel mounted timer monofunction,plasti
Standards	UL 508, IEC 61812-1
Thickness	1-6 mm
Minimum Switching Current	10 mA
Power Consumption In W	1 W
Product or Component Type	timer
Tightening Torque	0.5 N.m
Connections - Terminals	screw terminals 1 x 4 mm² IEC 60947-1, screw terminals 1 x 2.5 mm² IEC 60947-1
Maximum Voltage Drop	3 V
Electromagnetic Compatibility	electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Output Type	open collector PNP
[Us] Rated Supply Voltage	24 V DC
Time Delay Type	A
Setting Accuracy of Time Delay	+/- 10 % of full scale 25°C IEC 61812-1
Repeat Accuracy	+/- 0.5 %
Output Short-Circuit Protection	yes
Shock Resistance	+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3, 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
Range of Product	Harmony XB5
Fixing Collar Material	plastic
Disturbance Radiated/Conducted	class B EN 50022
Ip Degree of Protection	IP65 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529
Supply Voltage Limits	16.8-31.2 V DC
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
Local Signalling	LED green, flashing timing in progress, LED, steady no timing in progress and output relay energised
Temporary Permissible Current	10 A 0.01 s
Overvoltage Category	class 3 IEC 60536, class 3 IEC 60664-1
Reset Time	5 ms after time delay on de-energisation, 7 ms during time delay on de-energisation
Temperature Drift	+/- 0.05 %/°C
Immunity To Radioelectric Fields	10 V level 3 IEC 61000-4-6
Bezel Material	plastic
Vibration Resistance	0.15 mm 10-60 Hz)IEC 60068-2-6, 2 gn 60-150 Hz)IEC 60068-2-6
Device Presentation	monolithic product
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1, 4 kV IEC 60664-1
Line Rated Current	200 mA at 20°C( derating 1.5 mA per°C)
[Ui] Rated Insulation Voltage	50 V IEC 60947-1, 50 V IEC 60664-1
Protection Type	reverse polarity protection, overvoltage protection
Pollution Degree	3 IEC 60664-1
Ambient Air Temperature For Operation	-20-60°C
Dielectric Strength	1500 V IEC 61812-1
Maximum Residual Current	0.1 mA
Shape of Signaling Unit Head	round
Surge Withstand	1 kV, level 2 IEC 61000-4-5
Ambient Air Temperature For Storage	-20-80°C
Time Delay Range	0.5...10 min
Voltage Drift	+/- 0.2 %/V
Setting Accuracy Of Time Delay	+/- 10 % of full scale 25Â°C EN/IEC 61812-1
Ip Degree Of Protection	front IP65 IEC 60529 \|\| back IP20 IEC 60529
Shape Of Signaling Unit Head	round
Product Certifications	CE \|\| UL Listed
Product Or Component Type	timer

Description

This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5 to 10 minutes and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.
