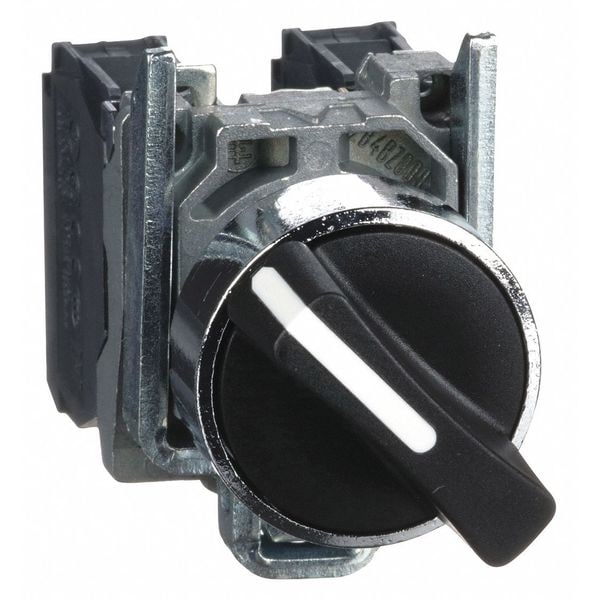

Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

Mfr # XB4BD25
Zoro # G8529516

$57.61

13% off

$49.85

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Size 22 mm
Basic Material Metal
Type of Operator Lever
Action Maintained/Maintained
Cam No Cam Included

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB4BD25
Zoro # G8529516
UPC #
785901145202
Country of Origin France
Category Selector Switches

Dimensions

Size	22 mm
Depth	68 mm
Width	30 mm
Height	47 mm
Mounting Diameter	22 mm
Overall Width	1.18 in
Overall Depth	2.68 in
Panel Cutout Diameter	22 mm
Manufacturer Warranty Length	18 mo
Overall Height	1.85 in

Details

Item	Short-Handled Selector Switch
Basic Material	Metal
Type of Operator	Lever
Action	Maintained/Maintained
Cam	No Cam Included
Operator Head Material	Plastic
Operator Color	Black
Color	Black
NEMA Rating	1, 12, 13, 2, 3, 4
Bezel Material	Chrome Plated Metal
Position	2
Bezel Color	Chrome
Key Removal	No Key
Standards	CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Key Number	No Key
Switch Operation @ Position D	No Fourth Position
IP Rating	IP67, IP69, IP69K
Switch Operation @ Position A	OX
Switch Operation @ Position C	No Third Position
Switch Operation @ Position B	XO
Series	XB4
Contact Operation	slow-break
Product Certifications	DNV \|\| LROS (Lloyds register of shipping) \|\| CSA \|\| GL \|\| UL \|\| BV
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Positive Opening	with EN/IEC 60947-5-1 appendix K
Shape Of Signaling Unit Head	round
Head Type	standard
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contacts Usage	standard contacts
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name	XB4
Contacts Type And Composition	1 NO + 1 NC
Device Presentation	complete product
Product Or Component Type	selector switch
Terminals Description Iso N°1	(13-14)NO \|\| (21-22)NC
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 60947-1
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m
Ambient Air Temperature For Operation	-40-70Â°C
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Operator Position Information	2 positions 90Â°
Operator Profile	black standard handle
Ambient Air Temperature For Storage	-40-70Â°C
Torque Value	0.14 N.m NO changing electrical state
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Contacts Material	silver alloy (Ag/Ni)
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
Electrical Reliability	Î» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 \|\| Î» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Overvoltage Category	class I IEC 60536
Ip Degree Of Protection	IP69 \|\| IP69K \|\| IP67 IEC 60529
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage	600 V 3)EN 60947-1
Mechanical Durability	1000000 cycles
Tightening Torque	0.8-1.2 N.m EN 60947-1
Protective Treatment	TH
Fixing Collar Material	zamak
Terminals Description Iso NÂ°1	(13-14)NO \|\| (21-22)NC
Switch Function @ 4th Position	No Fourth Position
Operator Illumination	Non-Illuminated
Hazardous Location Specification	Not Rated
Operator Head Color	Black
Number of Positions	2
Operator Head Type	Short-Handled Knob
Switch Function @ 2nd Position	On
NEMA Enclosure Rating	1, 12, 13, 2, 3, 4, 4X
Switch Function @ 1st Position	Off
Switch Function @ 3rd Position	No Third Position

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position A OX, Switch Operation @ Position B XO, Switch Operation @ Position C No Third Position, Switch Operation @ Position D No Fourth Position
