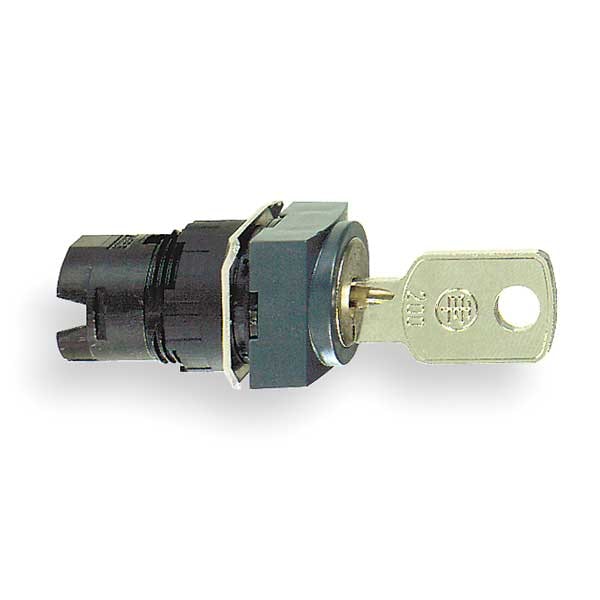

Non-Illum Selector Swtch, 16mm, 2 Pos, Keyd

Mfr # ZB6CGC
Zoro # G1699704

$38.89

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Action Maintained/Maintained
Size 16 mm
NEMA Rating 13, 4, 4X
Type of Operator Keyed
Cam No Cam

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB6CGC
Zoro # G1699704
UPC #
785901361503
Country of Origin France
Category Selector Switches

Dimensions

Size	16 mm
Manufacturer Warranty Length	18 mo
Panel Cutout Diameter	16 mm
Mounting Diameter	16 mm
Cad Overall Height	18 mm
Cad Overall Width	18 mm
Cad Overall Depth	55 mm

Details

Action	Maintained/Maintained
NEMA Rating	13, 4, 4X
Type of Operator	Keyed
Cam	No Cam
Color	Black
Item	Keyed Selector Switch
Bezel Material	Plastic
Operator Color	Black
Switch Operation @ Position C	No Third Position
Key Number	200
Bezel Color	Black
Switch Operation @ Position A	OX
Standards	CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, JIS C852, UL 508
Switch Operation @ Position D	No Fourth Position
Includes	Key
Operator Head Material	Metal
IP Rating	IP65
Key Removal	Any Position
Position	2
Switch Operation @ Position B	XO
Basic Material	Plastic
Series	XB6
Hazardous Location Specification	Not Rated
Operator Illumination	Non-Illuminated
Key Removal Position	Any Position
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 4th Position	No Fourth Position
Includes Operator Key	Key Included
Switch Function @ 3rd Position	No Third Position
Operator Head Color	Black
Number of Positions	2
Operator Head Type	Keyed
Nema Degree Of Protection	NEMA 13 UL 50 \|\| NEMA 4 UL 50 \|\| NEMA 4X UL 50 \|\| NEMA 13 CSA C22.2 No 94 \|\| NEMA 4 CSA C22.2 No 94 \|\| NEMA 4X CSA C22.2 No 94
Key Withdrawal Position	in any position
Operator Position Information	2 positions
Shape Of Signaling Unit Head	square
Electrical Shock Protection Class	class II IEC 61140
Operator Profile	black key switch
Ip Degree Of Protection	IP65 IEC 60529
Type Of Keylock	key 200
Ambient Air Temperature For Operation	-25-70Â°C
Product Or Component Type	head for key selector switch
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 \|\| 5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment	TC
Product Certifications	GOST \|\| UL \|\| CCC \|\| CSA
Ambient Air Temperature For Storage	-40-70Â°C
Device Short Name	ZB6

Description

Keyed Selector Switch, 16 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Black, Key Removal Any Position, Operator Head Material Metal, Bezel Material Plastic, Bezel Color Black, NEMA Rating 13, 4, 4X, IP Rating IP65, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, JIS C852, UL 508, Key Number 200, Includes Key
