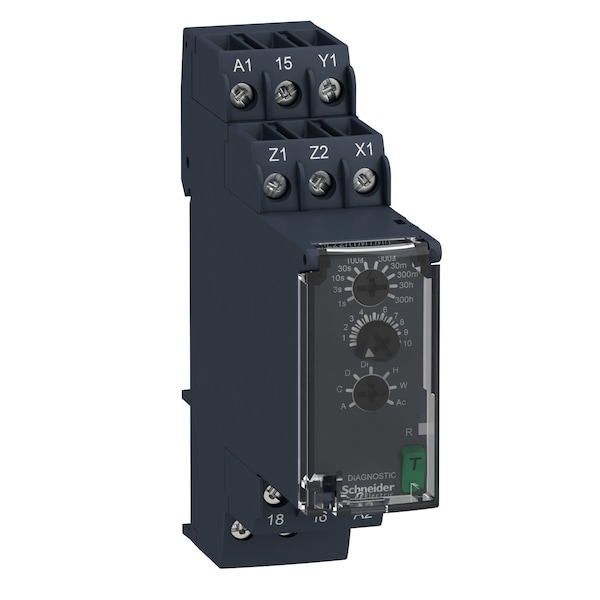

Multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s...300h, symmetrical flashing, 24...240V AC DC

Mfr # RE22R1MYMR
Zoro # G5956734

$90.69

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Function - Timing Relay power on-delay || off-delay || on-delay and off-delay || symmetrical flashing || interval
Adjustment Method - Timer rotary knob || diagnostic button || potentiometer external
Contact Form - Relay 1 C/O timed contact, cadmium free
Min. Time Setting - Timer 30...300 s || 10...100 s || 3...30 s || 30...300 min || 3...30 min || 0.3...3 s || 0.05...1 s || 30...300 h || 1...10 s || 3...30 h
Power Consumption - Relay 3-3 VA 240 V AC; 1.5 W 240 V DC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RE22R1MYMR
Zoro # G5956734
Country of Origin Indonesia
Category Time Delay Relays

Dimensions

Width

22.5 mm

Details

Item - Relay	multifunction relay
Function - Timing Relay	power on-delay \|\| off-delay \|\| on-delay and off-delay \|\| symmetrical flashing \|\| interval
Adjustment Method - Timer	rotary knob \|\| diagnostic button \|\| potentiometer external
Contact Form - Relay	1 C/O timed contact, cadmium free
Min. Time Setting - Timer	30...300 s \|\| 10...100 s \|\| 3...30 s \|\| 30...300 min \|\| 3...30 min \|\| 0.3...3 s \|\| 0.05...1 s \|\| 30...300 h \|\| 1...10 s \|\| 3...30 h
Power Consumption - Relay	3-3 VA 240 V AC; 1.5 W 240 V DC
Min. On/Off Pulse	100 ms with load in parallel \|\| 30 ms
Electrical Connection	35 mm DIN rail conforming to EN/IEC 60715
Hz - Electrical	50/60Hz
Standards	UL Listed \|\| CSA\|\| CE
Number of Functions	18
Item	Timer,24-240VAC/VDC,In 8A,Spdt Out Mu
Type of Output	relay
Input or Control Voltage Range	0.85...1.1 Us
Input Voltage	250 V AC
Minimum Switching Current	10 mA 5 V DC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Ambient Air Temperature For Operation	-20-60°C
Mounting Position	any position
Range of Product	Harmony Timer Relays
Maximum Delay Response	100 ms
Device Short Name	RE22
Reset Time	120 ms on de-energisation
Repeat Accuracy	+/- 0.5 % IEC 61812-1
Ambient Air Temperature For Storage	-40-70°C
Immunity To Microbreaks	10 ms
Dielectric Strength	2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Power Consumption In W	1.5 W 240 V DC
Supply Frequency	50...60 Hz +/- 5 %
Vibration Resistance	20 m/s² 10-150 Hz)IEC 60068-2-6
Insulation Resistance	100 MOhm 500 V DC IEC 60664-1
Mechanical Durability	10000000 cycles
Status Led	Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised
Overvoltage Category	III IEC 60664-1
Electromagnetic Compatibility	fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Relative Humidity	95-95 % 25-55°C
Tightening Torque	0.6-1 N.m IEC 60947-1
Creepage Distance	4 kV/3 IEC 60664-1
Housing Material	self-extinguishing
Voltage Drift	+/- 0.2 %/V
Temperature Drift	+/- 0.05 %/°C
Pollution Degree	3 IEC 60664-1
Connections - Terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Shock Resistance	15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
Function Available	A- Power on-delay relay-1 C/O, Ac- On-delay and off-delay relay w/ control signal-1 C/O, At- Power on-delay relay w/ pause/summation (X1)-1 C/O, Aw- Power on-delay relay w/ retrigger/restart-1 C/O, Act- On-delay and off-delay relay w/ control signal and pause/summation-1 C/O, C- Off-delay relay w/ control signal-1 C/O, Ct- Off-delay relay w/ control signal and pause/summation-1 C/O, D- Symmetrical flashing relay (starting pulse-off)-1 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-1 C/O, Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-1 C/O, Di- Symmetrical flashing relay (starting pulse-on)-1 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-1 C/O, Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-1 C/O, H- Interval relay-1 C/O, Ht- Interval relay w/ pause/summation (X1)-1 C/O, Hw- Interval relay w/ retrigger/restart-1 C/O, W- Interval relay w/ control signal off-1 C/O, Wt- Interval relay w/ control signal off and pause/summation-1 C/O
[Us] Rated Supply Voltage	24...240 V AC/DC 50/60 Hz
Switching Capacity In Va	2000 VA
[Uimp] Rated Impulse Withstand Voltage	5 kV 1.2-50µs IEC 60664-1
Nominal Output Current	8A
Maximum Switching Current	8A
Setting Accuracy of Time Delay	+/- 10 % of full scale 25°C IEC 61812-1
Electrical Durability	100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1
Ip Degree of Protection	IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
Power Consumption In Va	3-3 VA 240 V AC

Description

Timer,24-240VAC/VDC,In 8A,Spdt Out Mu
