Modular discovery packs, Zelio Logic, smart relay discoveryÃ‚Â pack, 10 I/O, 24 V DC

Mfr # SR3PACKBD
Zoro # G6600382

$302.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Number of Outputs 4 relay
Standards IEC 60068-2-27 Ea, IEC 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-11, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-12, IEC 61000-4-4 level 3
Clock with
Maximum Permissible Voltage 30 V analogue input circuit
Analogue Input Type common mode

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # SR3PACKBD
Zoro # G6600382
Country of Origin France
Category Programmable Controller Accessories

Details

Item	Zelio Sr3Pack Modular 10 Io 24Vdc
Number of Outputs	4 relay
Standards	IEC 60068-2-27 Ea, IEC 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-11, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-12, IEC 61000-4-4 level 3
Clock	with
Maximum Permissible Voltage	30 V analogue input circuit
Analogue Input Type	common mode
Connections - Terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Conversion Time	smart relay cycle time analogue input circuit
Backup Time	10 years 25°C
Product or Component Type	modular discovery packs
Pvc Free	Yes
Cycle Time	6-90 ms
Voltage State 1 Guaranteed	>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
Analogue Input Number	4
Output Voltage Limits	24...250 V AC relay output), 5...30 V DC relay output)
Operating Altitude	6561.68 ft (2000 m)
Overvoltage Category	III IEC 60664-1
Operating Rate In Hz	0.1 Hz at Ie)relay output, 10 Hz no load)relay output
Current State 0 Guaranteed	<= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)
Analogue Input Range	0...24 V, 0...10 V
Discrete Input Voltage	24 V DC
Electrical Durability	AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Maximum Altitude Transport	3048 m
Output Thermal Current	8 A for all 4 outputs relay output
Range of Product	Zelio Logic
Clock Drift	12 min/year 0-55°C, 6 s/month 25-25°C
Ambient Air Temperature For Storage	-40-70°C
Analogue Input Resolution	8 bits
Lsb Value	39 mV analogue input circuit
Repeat Accuracy	+/- 2 % 55°C analogue input circuit
Discrete Input Number	6 IEC 61131-2 Type 1
Input Compatibility	3-wire proximity sensors PNP discrete input
[Uimp] Rated Impulse Withstand Voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Response Time	10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
Conversion Error	+/- 5 % 25°C analogue input circuit, +/- 6.2 % 55°C analogue input circuit
Temperature Probe Type	NTC 10k 25°C, NTC 1000k 25°C, KTY81 210/220/221/222/250, Pt 500
Immunity To Microbreaks	1 ms
Input/Output Number	10
Switching Capacity In Ma	>= 10 mA 12 V relay output)
Maximum Supply Current	100 mA with extensions), 100 mA without extension)
Pollution Degree	2 IEC 61131-2
Local Display	with
Tightening Torque	0.5 N.m
Supply Voltage Limits	19.2-30 V
Power Dissipation In W	3 W without extension, 8 W with extensions
Reverse Polarity Protection	with
[Us] Rated Supply Voltage	24 V
Environmental Characteristic	EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2
Ip Degree of Protection	IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
Relative Humidity	95-95 % without condensation or dripping water
Operating Distance	10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Ambient Air Temperature For Operation	-20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Counting Frequency	1 kHz discrete input
Number or Control Scheme Lines	120-120 ladder, 0-200 FBD
Current State 1 Guaranteed	>= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Voltage State 0 Guaranteed	<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit, <= 5 V
Input Impedance	12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit, 7.4 kOhm I1...IA and IH...IR discrete input circuit
Discrete Input Current	4 mA
Discrete Input Type	resistive
Contacts Type And Composition	NO relay output

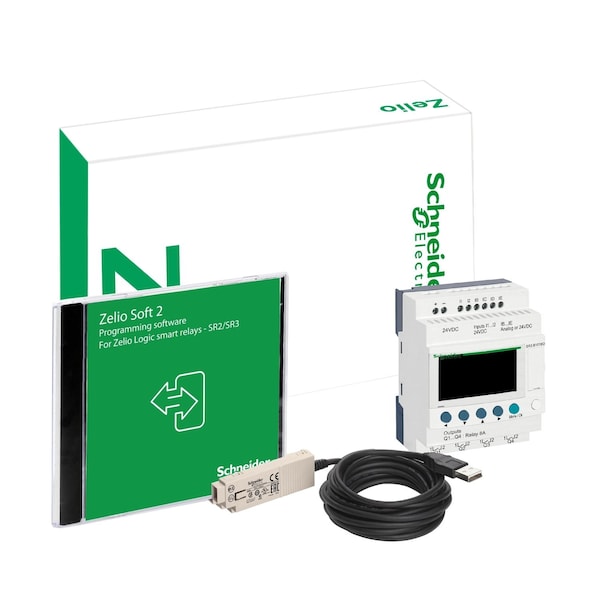

Kit Composition	SR3B101BD, cable PC SR2USB01 for connection to PC
Mechanical Durability	10000000 cycles relay output
Disturbance Radiated/Conducted	class B EN 55022-11 group 1
Number Or Control Scheme Lines	120-120 ladder \|\| 0-200 FBD
Number of outputs	4 relay
Product Certifications	GL \|\| UL \|\| CSA \|\| GOST \|\| C-tick
Ip Degree Of Protection	IP20 IEC 60529 terminal block) \|\| IP40 IEC 60529 front panel)
Product Or Component Type	modular discovery packs

Description

This Schneider Electric Zelio Logic SR3 discovery pack compact smart relay / programmable controller uses a supply voltage of 24 volts direct current, has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. This compact programmable relay discovery pack is ideal for discovering the Zelio Logic range of programmable smart relays. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Discovery package includes one copy of Zelio Soft and one USB cable to connect the relay to your PC. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
