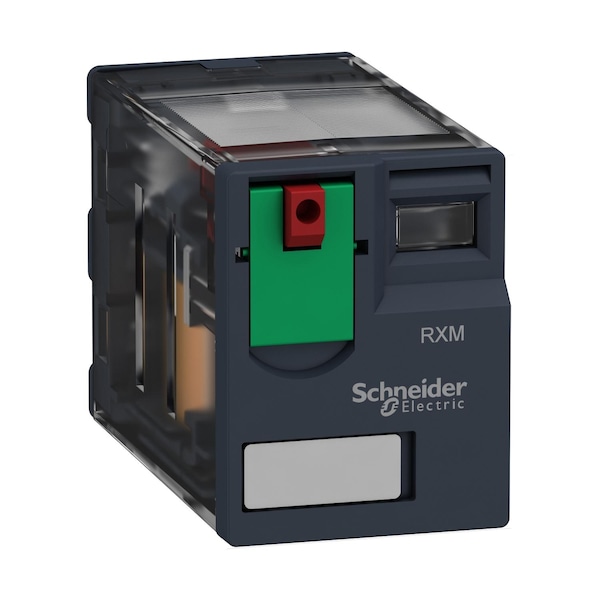

Miniature Plug-in relay - Zelio RXM 4 C/, 120V AC Coil Volts, 4 C/O

Mfr # RXM4GB1F7
Zoro # G600905665

$8.35

Sold in multiples of 10 for $83.50

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 120V AC
AC Contact Rating - Relay 3A @ 250V AC
DC Contact Rating - Relay 3A @ 28V DC
Contact Form - Relay 4 C/O
Power Consumption - Relay 1.2 VA

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RXM4GB1F7
Zoro # G600905665
Country of Origin China
Category Plug-In Relays

Details

Item	Miniature Plug-in relay - Zelio RXM 4 C/
Coil Volts	120V AC
AC Contact Rating - Relay	3A @ 250V AC
DC Contact Rating - Relay	3A @ 28V DC
Contact Form - Relay	4 C/O
Power Consumption - Relay	1.2 VA
Contact Material	Gold Plated Bifurcated Silver
Features	Lockable Test Button
Standards	EN/IEC 61810-1 C22.2 No 14; UL 508; GOST; Lloyd's; CE
Series	RXM; Miniature
Protection Category	RT I
Operating Temp. Range	-40-55°C
Switching Voltage	250 V IEC
Dielectric Strength	1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact; 2000 V AC between poles
Current Rating	2 A 28 V DC) NO IEC; 2 A 250 V AC) NO IEC; 1 A 28 V DC) NC IEC; 1 A 250 V AC) NC IEC; 3 A 28 V DC) UL; 3 A 277 V AC) UL
Operating Time	20 ms
Coil Resistance	3630 Ohm
Switching Power	Max 750 VA/84 W; Min 15 mW 3 mA, 5 V
Pin Shape	flat
Electrical Durability	100000 cycles resistive depending on mounting position and working environment
[Ie] Rated Operational Current	2 A 28 V DC) NO IEC, 2 A 250 V AC) NO IEC, 1 A 28 V DC) NC IEC, 1 A 250 V AC) NC IEC, 3 A 28 V DC) UL, 3 A 277 V AC) UL
Mechanical Durability	10000000 cycles
Shock Resistance	10 gnin operation, 30 gnnot operating
Utilisation Coefficient	0.2
Average Consumption	1.2 VA 60 Hz
Load Current	3 A 250 V AC, 3 A 28 V DC
[Ithe] Conventional Enclosed Thermal Current	3 A -40-55°C
Average Resistance	3630 Ohm 20°C +/- 15 %
Ambient Air Temperature For Storage	-40-85°C
Operating Position	any position
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Average Coil Consumption In VA	1.2-1.2 60 Hz
Ip Degree of Protection	IP40 conforming to IEC 60529
Device Presentation	complete product
Ambient Air Temperature For Operation	-40-55°C
Test Levels	level A group mounting
Product or Component Type	plug-in relay
Device Short Name	RXM
Rated Operational Voltage Limits	96...132 V AC
[Uc] Control Circuit Voltage	120 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage	2.5 kV 1.2/50µs
Minimum Switching Capacity	15 mW 3 mA, 5 V
Drop-Out Voltage Threshold	>= 0.15 Uc
Maximum Switching Capacity	750 VA/84 W
Status Led	without
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
Operating Rate	<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Pollution Degree	2
Series Name	Miniature
Range of Product	Harmony Electromechanical Relays
