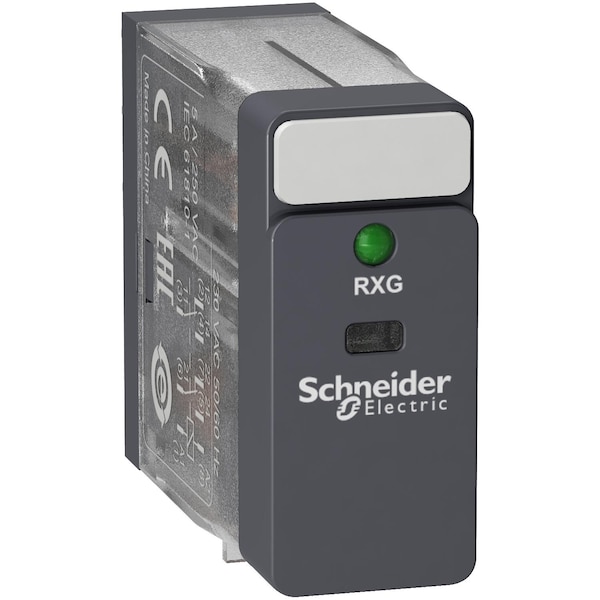

Interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 24V AC

Mfr # RXG23B7
Zoro # G7330400

$10.85

Sold in multiples of 10 for $108.50

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards IEC 61810-1 || UL 508 || CSA C22.2 No 14
Electrical Insulation Class class F
Contacts Material silver alloy (AgSnO2In2O3)
Test Levels level A
Product Certifications UL || CSA || EAC || CE || DNV-GL

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RXG23B7
Zoro # G7330400
Country of Origin China
Category Control Relays

Details

Standards	IEC 61810-1 \|\| UL 508 \|\| CSA C22.2 No 14
Item	Relay,2CO 5A@250VAC,24VAC,Coil Led
Electrical Insulation Class	class F
Contacts Material	silver alloy (AgSnO2In2O3)
Test Levels	level A
Product Certifications	UL \|\| CSA \|\| EAC \|\| CE \|\| DNV-GL
Status Led	with
Operating Rate	<= 1800 cycles/hour under load \|\| <= 18000 cycles/hour no-load
Reset Time	20 ms
Pollution Degree	2
Relative Humidity	10-85 %
Insulation Resistance	1000 MOhm at 500 V DC
Torque Value	0.8 N.m
Colour Of Cover	standard
Local Signalling	flag
Overvoltage Category	III
Contacts Type And Composition	2 C/O
Ip Degree Of Protection	IP40
Product Or Component Type	plug-in relay
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Minimum Switching Capacity	50 mW at 10 mA, 5 V DC
Ambient Air Temperature For Operation	-40-70°C
Resistance	260 Ohm +/- 10 %
Operating Time	20 ms
Dielectric Strength	1000 V AC between contacts with micro disconnection \|\| 5000 V AC between coil and contact with reinforced insulation \|\| 3000 V AC between poles with basic insulation
Mechanical Durability	10000000 cycles
Series Name	interface relay
Device Short Name	RXG
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation \|\| 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Contact Resistance	100 mOhm
Maximum Switching Capacity	1250 VA
[Ie] Rated Operational Current	5 A 30 V DC) UL \|\| 5 A 30 V DC) IEC \|\| 5 A 250 V AC) IEC \|\| 5 A 250 V AC) UL
Utilisation Coefficient	0.2
Shock Resistance	20 gn in operation \|\| 100 gn not in operation
Mounting Position	any position
Electrical Durability	100000 cycles NO resistive at 55°C \|\| 100000 cycles NC resistive at 55°C
Maximum Switching Voltage	250 V AC \|\| 30 V DC
Protection Category	RT I
Ambient Air Temperature For Storage	-40-85°C
[Ui] Rated Insulation Voltage	250 V IEC \|\| 300 V CSA \|\| 300 V UL
Drop-Out Voltage Threshold	>= 0.3 Uc AC
Average Consumption	0.82 VA 60 Hz
[Ithe] Conventional Enclosed Thermal Current	5 A -40-55°C
Control Circuit Voltage Limits	0.8...1.1 Uc AC
Load Current	5 A 250 V AC
[Uimp] Rated Impulse Withstand Voltage	6 kV 1.2/50µs
Range of Product	Harmony Electromechanical Relays
Device Presentation	complete product

Description

This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. It has large choice of number of contacts for high rated current use with space-saving design. It also offers LED indicator. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
