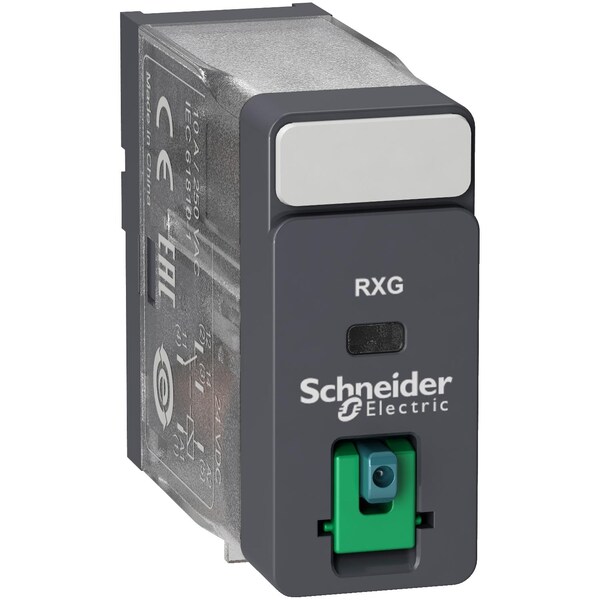

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 24V DC

Mfr # RXG11BD
Zoro # G1979836

$4.79

Sold in multiples of 10 for $47.90

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 24V DC
DC Contact Rating - Relay 10A @ 30V DC
AC Contact Rating - Relay 10A @ 250V AC
Contact Form - Relay 1 C/O
Contact Material Silver Alloy (AgSnO2In2O3)

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RXG11BD
Zoro # G1979836
Country of Origin China
Category Power Relays

Details

Item - Relay	Plug-In Relay
Coil Volts	24V DC
DC Contact Rating - Relay	10A @ 30V DC
AC Contact Rating - Relay	10A @ 250V AC
Contact Form - Relay	1 C/O
Contact Material	Silver Alloy (AgSnO2In2O3)
Item	Relay,1CO 10A@250VAC,24VDC,Coil Ltb
Features	Lockable Test Button; Insulation Class F; Flag Local Signalling
Standards	CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Switching Voltage	250 V AC \|\| 30 V DC
Operating Temp. Range	-40-70°C
Mounting Type	any position
Protection Category	RT I
Coil Resistance	1100 Ohm +/- 10 %
Dielectric Voltage	1000 V AC between contacts with micro disconnection \|\| 5000 V AC between coil and contact with reinforced insulation
Control Type	lockable test button
Operating Rate	<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Range of Product	Harmony Electromechanical Relays
Mechanical Durability	10000000 cycles
Device Short Name	RXG
Device Presentation	complete product
Colour of Cover	standard
Electrical Durability	100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Drop-Out Voltage Threshold	>= 0.1 Uc DC
Utilisation Coefficient	0.2
[Uc] Control Circuit Voltage	24 V DC
Maximum Switching Capacity	2500 VA
Shock Resistance	20 gn in operation, 100 gn not in operation
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Series Name	interface relay
Contacts Material	silver alloy (AgSnO2In2O3)
Relative Humidity	10-85 %
Test Levels	level A group mounting
Overvoltage Category	III
Pollution Degree	2
Insulation Resistance	1000 MOhm at 500 V DC
Ip Degree of Protection	IP40
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55°C
Ambient Air Temperature For Operation	-40-70°C
Minimum Switching Capacity	500 mW at 100 mA, 5 V DC
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
Load Current	10 A 250 V AC
Ambient Air Temperature For Storage	-40-85°C
[Ie] Rated Operational Current	10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL
Status Led	without
Torque Value	0.8 N.m
Local Signalling	flag

Description

Relay,1CO 10A@250VAC,24VDC,Coil Ltb
