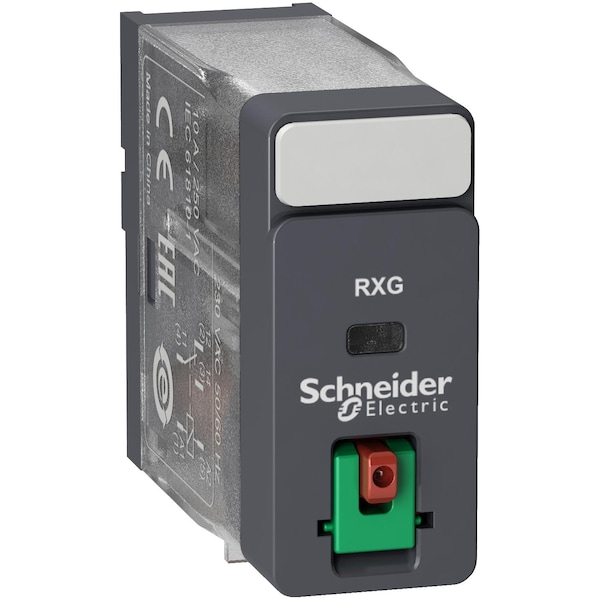

Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 24V AC

Mfr # RXG11B7
Zoro # G1984133

$7.35

Sold in multiples of 10 for $73.50

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 24V AC
DC Contact Rating - Relay 10A @ 30V DC
AC Contact Rating - Relay 10A @ 250V AC
Contact Form - Relay 1 C/O
Power Consumption - Relay 0.82VA

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RXG11B7
Zoro # G1984133
Country of Origin China
Category Power Relays

Details

Item - Relay	Plug-In Relay
Coil Volts	24V AC
DC Contact Rating - Relay	10A @ 30V DC
AC Contact Rating - Relay	10A @ 250V AC
Contact Form - Relay	1 C/O
Power Consumption - Relay	0.82VA
Contact Material	Silver Alloy (AgSnO2In2O3)
Features	Lockable Test Button; Insulation Class F; Flag Local Signalling
Item	Relay,1CO 10A@250VAC,24VAC,Coil Ltb
Standards	CSA C22.2 No 14; IEC 61810-1; UL 508; CSA; EAC; UL; CE; DNV-GL
Switching Voltage	250 V AC \|\| 30 V DC
Mounting Type	any position
Operating Temp. Range	-40-70°C
Protection Category	RT I
Coil Resistance	260 Ohm +/- 10 %
Dielectric Voltage	1000 V AC between contacts with micro disconnection \|\| 5000 V AC between coil and contact with reinforced insulation
Range of Product	Harmony Electromechanical Relays
Device Presentation	complete product
Load Current	10 A 250 V AC
Insulation Resistance	1000 MOhm at 500 V DC
Ip Degree of Protection	IP40
Ambient Air Temperature For Storage	-40-85°C
Shock Resistance	20 gn in operation, 100 gn not in operation
Ambient Air Temperature For Operation	-40-70°C
Mechanical Durability	10000000 cycles
Local Signalling	flag
[Ie] Rated Operational Current	10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55°C
Control Type	lockable test button
Operating Rate	<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
Maximum Switching Capacity	2500 VA
Test Levels	level A group mounting
Status Led	without
Pollution Degree	2
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
Overvoltage Category	III
Contacts Material	silver alloy (AgSnO2In2O3)
Drop-Out Voltage Threshold	>= 0.3 Uc AC
Utilisation Coefficient	0.2
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Minimum Switching Capacity	500 mW at 100 mA, 5 V DC
Relative Humidity	10-85 %
Average Consumption	0.82 VA 60 Hz
Series Name	interface relay
Electrical Durability	100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Colour of Cover	standard
Torque Value	0.8 N.m
Control Circuit Voltage Limits	0.8...1.1 Uc AC
Device Short Name	RXG

Description

This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
