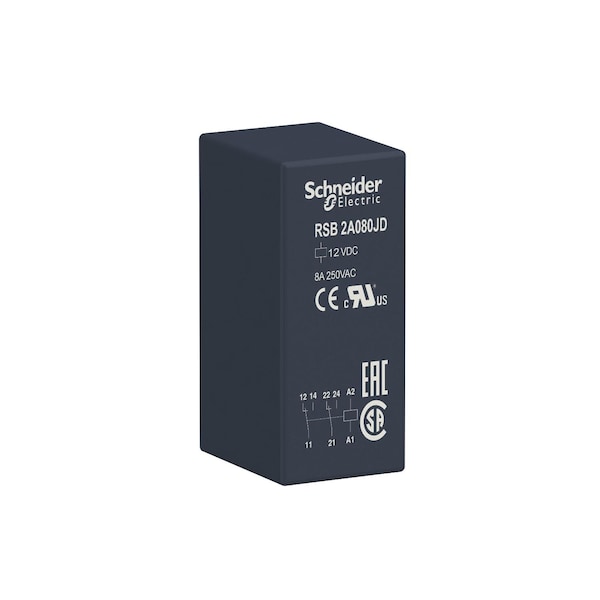

Interface plug-in relay, 8 A, 2 CO, 12 V, 12V DC Coil Volts, 2 C/O

Mfr # RSB2A080JD
Zoro # G100905073

$6.19

Sold in multiples of 10 for $61.90

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 12V DC
AC Contact Rating - Relay 8A @ 250V AC
DC Contact Rating - Relay 8A @ 28V DC
Contact Form - Relay 2 C/O
Power Consumption - Relay 0.45 W

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RSB2A080JD
Zoro # G100905073
Country of Origin Austria
Category Plug-In Relays

Details

Item	Interface plug-in relay,8 A,2 CO,12 V
Coil Volts	12V DC
AC Contact Rating - Relay	8A @ 250V AC
DC Contact Rating - Relay	8A @ 28V DC
Contact Form - Relay	2 C/O
Power Consumption - Relay	0.45 W
Contact Material	Silver Alloy (AgNi)
Standards	UL 508; EN/IEC 61810-1; CSA C22.2 No 14; CE; EAC
Current Rating	4 A AC-1/DC-1) NC IEC; 8 A AC-1/DC-1) NO IEC
Dielectric Strength	1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact
Pin Shape	flat (PCB type)
Operating Time	20 ms operating \|\| 20 ms reset
Series	RSB; interface relay
Switching Power	Max 2000 VA/224 W; Min 120 mW 10 mA, 12 V
Switching Voltage	12/300 V DC
Coil Resistance	360 Ohm
Operating Temp. Range	-40-85°C DC)
Protection Category	RT I
Range of Product	Harmony Electromechanical Relays
Control Type	without push-button
[Uimp] Rated Impulse Withstand Voltage	3.6 kV IEC 61000-4-5
Operating Position	any position
Series Name	interface relay
Vibration Resistance	+/- 1 mm 10-55 Hz)IEC 60068-2-6
Minimum Switching Capacity	120 mW 10 mA, 12 V
Maximum Switching Voltage	300 V DC IEC
Contact Operation	standard
Ambient Air Temperature For Storage	-40-85°C
[Ue] Rated Operational Voltage	8.4...18 V DC
Average Coil Consumption	0.45 W DC
Test Levels	level A group mounting
Device Presentation	complete product
Operating Rate	<= 600 cycles/hour under load, <= 18000 cycles/hour no-load
[Ui] Rated Insulation Voltage	400 V IEC 60947
Device Short Name	RSB
Maximum Switching Capacity	2000 VA/224 W
Ip Degree of Protection	IP40 conforming to IEC 60529
Minimum Switching Current	10 mA
Ambient Air Temperature For Operation	-40-85°C DC)
Shock Resistance	10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Mechanical Durability	30000000 cycles
[Ie] Rated Operational Current	4 A AC-1/DC-1) NC IEC, 8 A AC-1/DC-1) NO IEC
Status Led	without
Marking	CE
[Uc] Control Circuit Voltage	12 V DC
[Ithe] Conventional Enclosed Thermal Current	8 A -40-40°C
Load Current	8 A 250 V AC, 8 A 28 V DC
Average Resistance	360 Ohm AC 20°C +/- 10 %
Product or Component Type	plug-in relay
Electrical Durability	100000 cycles, 8 A at 250 V, AC-1 NO, 100000 cycles, 4 A at 250 V, AC-1 NC
Drop-Out Voltage Threshold	>= 0.1 Uc DC

Description

This Harmony RSB interfacing plug-in relay has a control coil voltage of 12V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
