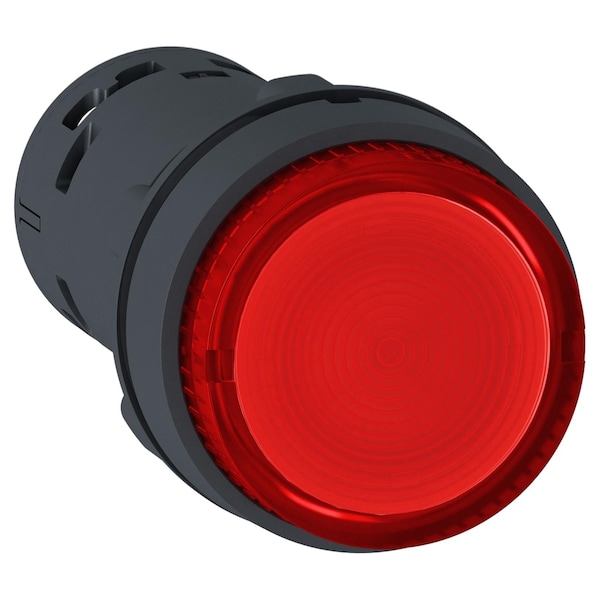

Illuminated push button, Harmony XB7, red projecting, 22mm, integral LED, push and push to release, 1NO, 24V AC

Mfr # XB7NJ04B1
Zoro # G400905612

$60.15

Sold in multiples of 10 for $601.50

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
Electrical Shock Protection Class class II IEC 61140
Current Consumption 18 to 27 mA
Electrical Durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB7NJ04B1
Zoro # G400905612
Country of Origin Indonesia
Category Push Button Switches

Dimensions

Mounting Diameter	22 mm
Cad Overall Height	29 mm
Cad Overall Depth	57.5 mm
Cad Overall Width	29 mm

Details

Item	ILLUM. P.B - LED - Latch -1NO - Red - 24
Standards	UL 508 \|\| EN/IEC 60947-1 \|\| CSA C22.2 No 14 \|\| JIS C8201-5-1 \|\| EN/IEC 60947-5-1 \|\| JIS C8201-1
Electrical Shock Protection Class	class II IEC 61140
Current Consumption	18 to 27 mA
Electrical Durability	1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Shape Of Screw Head	cross JIS No 1 \|\| cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ø 4 mm \|\| slotted flat Ø 5.5 mm
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Nema Degree Of Protection	NEMA 12 UL 50 E
Protective Treatment	TH
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Ambient Air Temperature For Operation	-25-70°C
Electrical Reliability	Λ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4
Signalling Type	steady
Bulb Base	integral LED
Tightening Torque	0.8-1.2 N.m EN 60947-1
Electromagnetic Emission	class B EN 55011
Operator Additional Information	with plain lens
Device Mounting	fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Ambient Air Temperature For Storage	-40-70°C
Shock Resistance	50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 \|\| 30 gn 18 ms) half sine wave acceleration
Light Source	LED
Device Short Name	XB7
Operator Profile	red projecting, unmarked
[Ie] Rated Operational Current	0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 \|\| 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 \|\| 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 \|\| 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Type Of Operator	push and push-to-release
[Us] Rated Supply Voltage	24 V AC/DC
Contact Operation	slow-break
[Ui] Rated Insulation Voltage	250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-1
Device Presentation	monolithic product
Fixing Mode	fixing nut beneath head 2-2.4 N.m
Product Or Component Type	illuminated push-button
Contacts Type And Composition	1 NO
Shape Of Signaling Unit Head	round
Supply Voltage Limits	19.2-30 V DC \|\| 21.6-26.4 V AC
Product Certifications	GOST \|\| CCC
Short-Circuit Protection	4 A cartridge fuse gG EN/IEC 60947-5-1
Terminals Description Iso N°1	(13-14)NO
Positive Opening	with (only NO)
Ip Degree Of Protection	IP20 IEC 60529 rear face) \|\| IP65 IEC 60529 front face)
Mechanical Durability	300000 cycles
Fixing Center	>= 30 x 40 mm support panel) metal 1-6 mm \|\| >= 30 x 40 mm support panel) plastic 2-6 mm
Service Life	70000 h at rated voltage and 25°C
Range of Product	Harmony XB7
