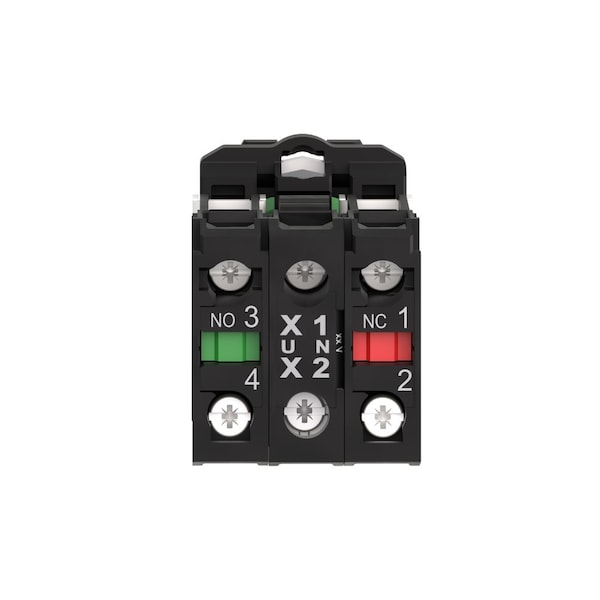

Illuminated push button, Harmony XB5, plastic, blue flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

Mfr # XB5AW36B5
Zoro # G7655875

$78.79

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Depth 57 mm
Height 42 mm
Width 30 mm
Fixing Collar Material plastic

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB5AW36B5
Zoro # G7655875
Country of Origin France
Category Push Button Contact Blocks

Dimensions

Depth	57 mm
Height	42 mm
Width	30 mm
Mounting Diameter	22 mm

Details

Item	Pushbutton Led 24V 22MM Xb5B Options
Standards	JIS C8201-5-1 \|\| EN/IEC 60947-1 \|\| UL 508 \|\| EN/IEC 60947-5-4 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14 \|\| JIS C8201-1
Fixing Collar Material	plastic
Ambient Air Temperature For Storage	-40-70°C
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Head Type	standard
Terminals Description Iso N°1	(21-22)NC \|\| (13-14)NO
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
[Us] Rated Supply Voltage	24 V AC/DC 50/60 Hz
Type Of Operator	spring return
Signalling Type	steady
Operator Profile	blue flush, unmarked
Positive Opening	with EN/IEC 60947-5-1 appendix K
Device Presentation	complete product
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP69 \|\| IP69K \|\| IP67
Contacts Type And Composition	1 NO + 1 NC
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ø 4 mm \|\| slotted flat Ø 5.5 mm
Electromagnetic Emission	class B IEC 55011
Contacts Material	silver alloy (Ag/Ni)
Operator Additional Information	with plain lens
Ik Degree Of Protection	IK05 IEC 50102
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Supply Voltage Limits	19.2-30 V DC \|\| 21.6-26.4 V AC
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-4-2 \|\| 8 kV in free air (in insulating parts) IEC 61000-4-2
Contact Operation	slow-break
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Contacts Usage	standard contacts
Ambient Air Temperature For Operation	-40-70°C
Mechanical Durability	10000000 cycles
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Resistance To Fast Transients	2 kV IEC 61000-4-4
Resistance To High Pressure Washer	7000000 Pa 55°C 0.1 m
Device Short Name	XB5
Surge Withstand	1 kV IEC 61000-4-5
Product Certifications	GL \|\| CSA \|\| BV \|\| LROS (Lloyds register of shipping) \|\| DNV \|\| UL Listed
Operating Travel	1.5 mm NC changing electrical state) \|\| 2.6 mm NO changing electrical state) \|\| 4.3 mm total travel)
Cap/Operator Or Lens Colour	blue
Tightening Torque	0.8-1.2 N.m EN 60947-1
Shape Of Signaling Unit Head	round
Service Life	100000 h at rated voltage and 25°C
Overvoltage Category	class II IEC 60536
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Bulb Base	integral LED
Operating Force	3.5 N NC changing electrical state \|\| 3.8 N
Current Consumption	18 mA
Product Or Component Type	illuminated push-button
Protective Treatment	TH
[Ui] Rated Insulation Voltage	600 V 3)EN/IEC 60947-1
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 \|\| λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Bezel Material	dark grey plastic
Light Source	universal LED
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Range of Product	Harmony XB5

Description

This Harmony XB5, illuminated modular blue push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
