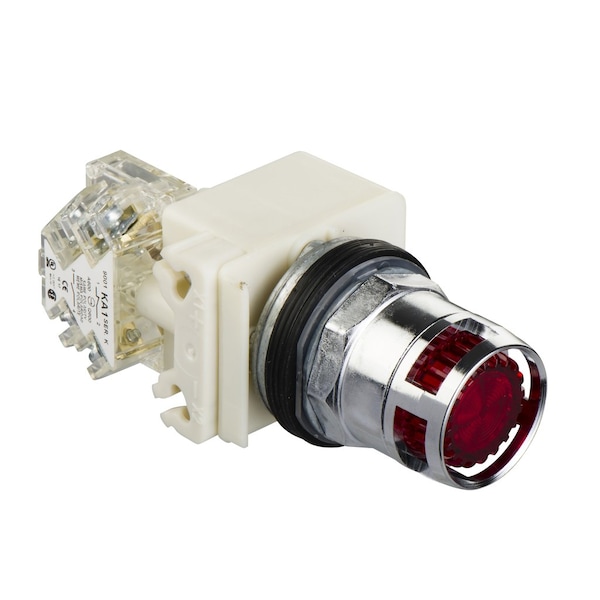

Illuminated push-button, Harmony 9001K, metal, metal guard flush, red, 30mm, spring return, 120V, 1 C/O

Mfr # 9001K3L38RH13
Zoro # G3305020

$161.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Size 30 mm
Bezel Material metal
Standards CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508
Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Device Presentation complete product

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # 9001K3L38RH13
Zoro # G3305020
Country of Origin Mexico
Category Push Button Switches

Dimensions

Size	30 mm
Cad Overall Width	54 mm
Mounting Diameter	30 mm
Cad Overall Depth	106 mm
Cad Overall Height	42 mm

Details

Item	Red illuminated pushbutton 0 30 - flush
Bezel Material	metal
Standards	CSA C22.2 No 14 \|\| JIS C 852 \|\| EN/IEC 60947-5-4 \|\| JIS C 4520 \|\| EN/IEC 60947-5-1 \|\| EN/IEC 60947-1 \|\| UL 508
Connections - Terminals	screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Device Presentation	complete product
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Ip Degree Of Protection	IP66 IEC 60529
Contacts Type And Composition	1 C/O
Light Block Supply	direct, full voltage or resistor
Ambient Air Temperature For Operation	-25-70°C
[Ie] Rated Operational Current	0.55 A 125 V, DC-13, A600-Q600 NEMA
Contacts Material	silver alloy contacts
Operating Position	any position
Type Of Operator	spring return
Mechanical Durability	5000000 cycles
Device Short Name	9001K
Operator Profile	flush, red flush, unmarked
Ambient Air Temperature For Storage	-40-70°C
Bulb Base	BA 9s
Contact Operation	standard
Operator Additional Information	metal guard
Positive Opening	without
Protective Treatment	TC
Cap/Operator Or Lens Colour	red
Shock Resistance	50 gn IEC 60068-2-27
Nema Degree Of Protection	NEMA 1 \|\| NEMA 12 \|\| NEMA 13 \|\| NEMA 2 \|\| NEMA 3 \|\| NEMA 3R \|\| NEMA 4
Product Certifications	NEMA \|\| UL 508
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
Short-Circuit Protection	10 A cartridge fuse IEC 60947-5-1
Shape Of Screw Head	cross slotted
Rated Breaking Capacity	1.2 kA 600 V AC-15, 720 VA \|\| 1.5 kA 480 V AC-15, 720 VA \|\| 3 kA 240 V AC-15, 720 VA \|\| 6 kA 120 V AC-15, 720 VA \|\| 0.1 kA 600 V DC-13 \|\| 0.27 kA 250 V DC-13 \|\| 0.55 kA 125 V DC-13
Overvoltage Category	class II IEC 61140
Product Or Component Type	illuminated push-button
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Light Source	incandescent bulb, incandescent
[Us] Rated Supply Voltage	120 V AC/DC, 120 V
[Ith] Conventional Free Air Thermal Current	10 A
[Icm] Rated Short-Circuit Making Capacity	12 kA 600 V AC-15, 7200 VA \|\| 15 kA 480 V AC-15, 7200 VA \|\| 30 kA 240 V AC-15, 7200 VA \|\| 60 kA 120 V AC-15, 7200 VA
Shape Of Signaling Unit Head	octagonal
Terminals Description Iso N°1	(13-14-11-12)OF
Vibration Resistance	7 gn 2-500 Hz)IEC 60068-2-6
Range of Product	Harmony 9001K
