Shop All Push Button Control Stations
Schneider Electric

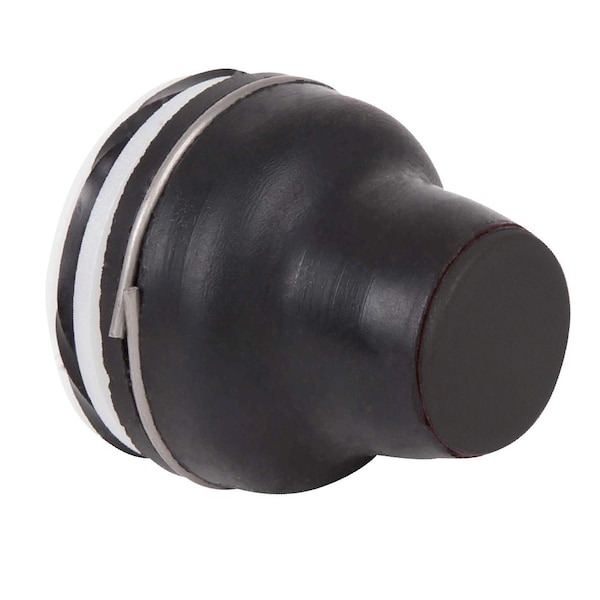

Head for push button, Harmony XAC, plastic, black, booted, operating travel 4mm, 25...+ 70 degree C
Mfr # XACB9112
Zoro # G7655699
Sold in multiples of 10 for $70.00
$70.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Standards EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1
- Operator Color black
- IP Rating IP65 conforming to IEC 60529
- Ambient Air Temperature For Operation -25-70°C
- Component Name XACB
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # XACB9112
- Zoro # G7655699
- Country of Origin Czechia
- Category Push Button Control Stations
Details
Item | Pendant Station Booted Operator Xac |
Standards | EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 |
Operator Color | black |
IP Rating | IP65 conforming to IEC 60529 |
Ambient Air Temperature For Operation | -25-70°C |
Component Name | XACB |
Ambient Air Temperature For Storage | -40-70°C |
Product or Component Type | head for push-button |
Marking | unmarked |
Range of Product | Harmony XAC |
Operating Travel | 4 mm |
Operator Additional Information | booted |
Shock Resistance | 100 gn IEC 60068-2-27 |
Ik Degree of Protection | IK08 conforming to IEC 62262 |
Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
Product Compatibility | XESD2251, XESB2011, XENB...., XENC...., XESD2241, XESD2201, XEND.... |
Electrical Shock Protection Class | class II IEC 61140 |
Description
Pendant Station Booted Operator Xac
Documents & Resources
Restrictions
- WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
