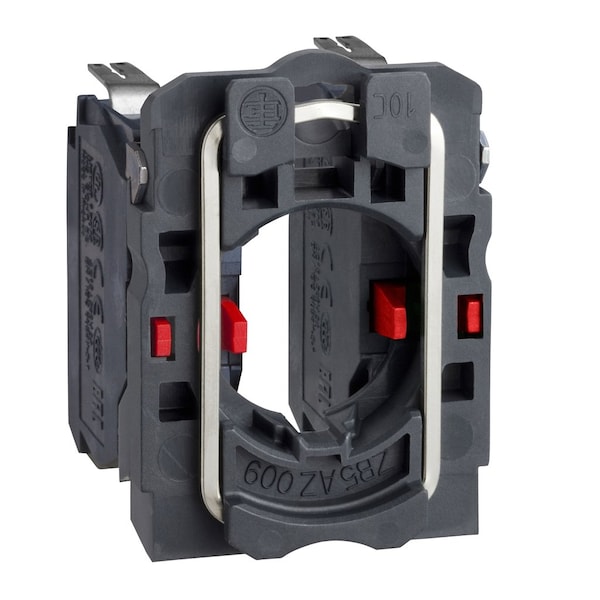

Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 2NC faston connector

Mfr # ZB5AZ1043
Zoro # G601209632

$27.69

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Standard Contacts
Number of NC Aux. Contacts 2
For Use With Harmony XB5
Includes Body, Fixing Collar
Standards EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, JIS C8201-1

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB5AZ1043
Zoro # G601209632
Country of Origin France
Category Auxiliary Contacts

Dimensions

Depth	32 mm
Height	42 mm
Width	30 mm

Details

Item	Single contact block with body/fixing co
Type	Standard Contacts
Number of NC Aux. Contacts	2
For Use With	Harmony XB5
Includes	Body, Fixing Collar
Standards	EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, JIS C8201-1
Features	Mercury Free, Toxic Heavy Metal Free
Contacts Material	silver alloy (Ag/Ni)
Contact Operation	slow-break
Positive Opening	with EN/IEC 60947-5-1 appendix K
Connections - Terminals	Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
Mechanical Durability	10000000 cycles
Ip Degree of Protection	IP20 IEC 60529
Range of Product	Harmony XB5
Ambient Air Temperature For Operation	-40-70°C
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Contact Block Type	single
Device Composition	body, fixing collar
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage	250 V 3)EN 60947-1
Protective Treatment	TH
Device Short Name	ZB5
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Head Type	standard
Fixing Collar Material	plastic
Ambient Air Temperature For Storage	-40-70°C
Operating Travel	1.5 mm NC changing electrical state), 4.3 mm total travel)
Contacts Usage	standard contacts
Contacts Type And Composition	2 NC
Terminals Description Iso N°1	(11-12)NC
Product or Component Type	complete body/contact assembly

Description

This Harmony ZB5AZ1043 is a single contact block with body/fixing collar 2 NC faston connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
