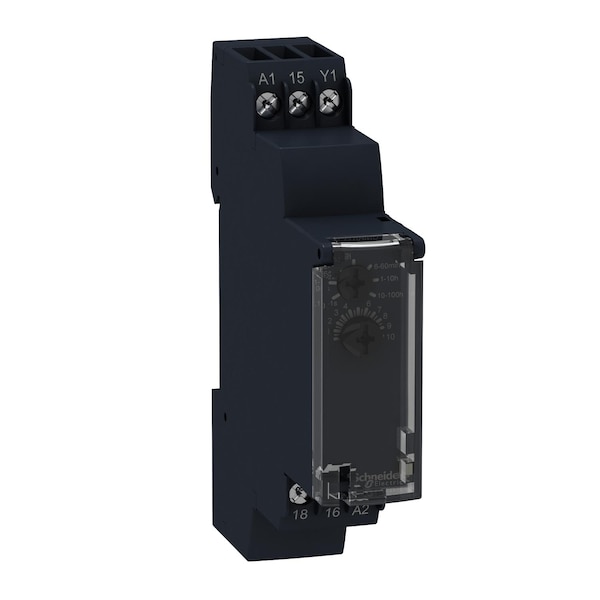

Dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, cadmium free, 24V DC or 24...240V AC DC

Mfr # RE17RHMU
Zoro # G5956770

$47.39

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Function - Timing Relay on-delay timing
Adjustment Method - Timer selector switch front panel
Min. Time Setting - Timer 10...100 h || 0.1...1 s || 6...60 min || 1...10 s || 1...10 min || 6...60 s || 1...10 h
Contact Form - Relay 1 C/O
Power Consumption - Relay 0-32 VA 240 V AC; 0.6 W 24 V DC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RE17RHMU
Zoro # G5956770
Country of Origin Indonesia
Category Time Delay Relays

Dimensions

Depth	72 mm
Width	17.5 mm
Height	90 mm

Details

Item - Relay	dual function relay
Function - Timing Relay	on-delay timing
Adjustment Method - Timer	selector switch front panel
Min. Time Setting - Timer	10...100 h \|\| 0.1...1 s \|\| 6...60 min \|\| 1...10 s \|\| 1...10 min \|\| 6...60 s \|\| 1...10 h
Contact Form - Relay	1 C/O
Power Consumption - Relay	0-32 VA 240 V AC; 0.6 W 24 V DC
Input Voltage	250 V
Item	On-delay,Timer,240V,8A
Contact Material	cadmium free
Type of Output	relay
Electrical Connection	35 mm DIN rail conforming to EN/IEC 60715
Hz - Electrical	50/60 Hz
Number of Functions	2
Standards	cULus\|\| CSA
Input or Control Voltage Range	0.85...1.1 Us
Minimum Switching Current	10 mA 5 V DC
Mechanical Durability	10000000 cycles
Breaking Capacity	2000 VA
Device Short Name	RE17R
Maximum Switching Current	8 A AC/DC
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Nominal Output Current	8A
Creepage Distance	4 kV/3 IEC 60664-1
Electromagnetic Compatibility	electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Housing Material	self-extinguishing
Compatibility Code	RE17
Maximum Switching Voltage	250 V AC
[Us] Rated Supply Voltage	24...240 V AC 50/60 Hz, 24 V DC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Range of Product	Harmony Timer Relays
Time Delay Type	H, Ht
Insulation Resistance	100 MOhm 500 V DC IEC 60664-1
Local Signalling	LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Vibration Resistance	20 m/s² 10-150 Hz)IEC 60068-2-6
Voltage Drift	+/- 0.2 %/V
Impulse Duration	100 ms with load in parallel typical, 30 ms typical
Marking	CE
Repeat Accuracy	+/- 0.5 % IEC 61812-1
Maximum Power Consumption In W	0.6 W 24 V DC
Maximum Delay Response	100 ms
Temperature Drift	+/- 0.05 %/°C
Operating Rate In Hz	10 Hz
Supply Frequency	50...60 Hz +/- 5 %
Ambient Air Temperature For Operation	-20-60°C
Connections - Terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Tightening Torque	0.6-1 N.m IEC 60947-1
Power Consumption In Va	0-32 VA 240 V AC
On-Load Factor	1
Reset Time	120 ms on de-energisation typical
Setting Accuracy of Time Delay	+/- 10 % of full scale 25°C IEC 61812-1
Mounting Position	any position in relation to normal vertical mounting plane
[Uimp] Rated Impulse Withstand Voltage	5 kV 1.2/50µs
Electrical Durability	100000 cycles resistive 8 A 250 V AC
Ambient Air Temperature For Storage	-30-60°C
Ip Degree of Protection	IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Immunity To Microbreaks	20 ms
Relative Humidity	93-93 % without condensation IEC 60068-2-30
Dielectric Strength	2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1

Description

On-delay,Timer,240V,8A
