Schneider Electric

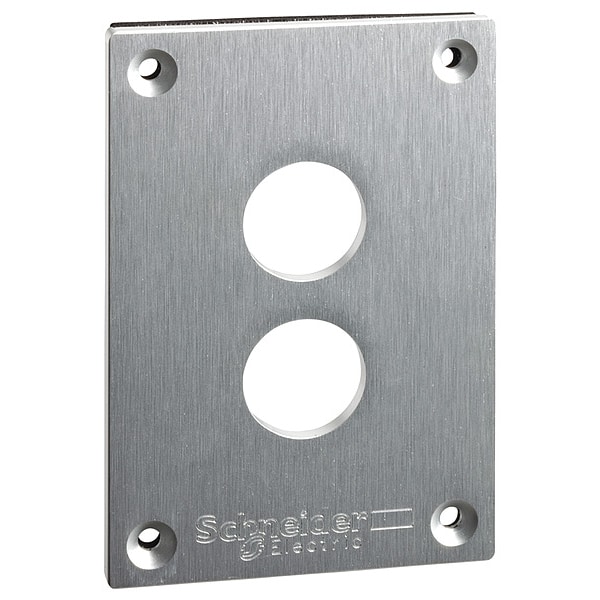

DrilledFrontPlate, 22mmHoles, NoLegend
Mfr # XAPE302
Zoro # G0200246
original price:
$46.26
17% off
$38.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- For Use With 22.00mm Control and Signaling Units
- Features (2) Cut-Out Drilled 22 mm Holes, Flush Mounting, Operating Temperatures From -40 Degrees F to 158 Degrees F
- Legend No Legend
- Color Anodized Aluminum
- Includes (2) 22mm Openings
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # XAPE302
- Zoro # G0200246
- UPC # 785901920366
- Country of Origin France
- Category Push Button Accessories
Dimensions
Product Front Plate Size | 72 x 105 mm |
Details
Item | Drilled Front Plate |
For Use With | 22.00mm Control and Signaling Units |
Features | (2) Cut-Out Drilled 22 mm Holes, Flush Mounting, Operating Temperatures From -40 Degrees F to 158 Degrees F |
Legend | No Legend |
Color | Anodized Aluminum |
Includes | (2) 22mm Openings |
Material | anodised aluminium |
Compatible with Series | XAP |
Compatible Product Type | Control Stations |
Resistance Properties | Dust Resistant, Impact Resistant, Chemical Resistant, Vibration Resistant, Watertight |
Product Type | Front Cover |
Ambient Air Temperature For Storage | -40-70°C |
Overvoltage Category | class I IEC 60536 || class I NF C 20-030 |
Resistance To Chemical Agents | good resistant to acetone || good resistant to alcohols || good resistant to chloride and fluoride solvents || good resistant to diluted mineral acids || good resistant to oils and petrol || good resistant to organic acids || good resistant to salts |
Protective Treatment | TC || TH |
Product Destination | for Ø 22 mm control and signalling units |
Device Short Name | XAPE |
Ambient Air Temperature For Operation | -25-70°C |
Device Mounting | flush |
Product Or Component Type | front plate with fixing screws |
Ip Degree Of Protection | IP65 IEC 60529 || IP657 NF C 20-010 |
Number Of Cut-Out | 2 cut-outs |
Description
Drilled Front Plate, For Use With 22.00mm Control and Signaling Units, Legend No Legend, Anodized Aluminum, Includes (2) 22mm Openings
