This Product is Discontinued
Schneider Electric

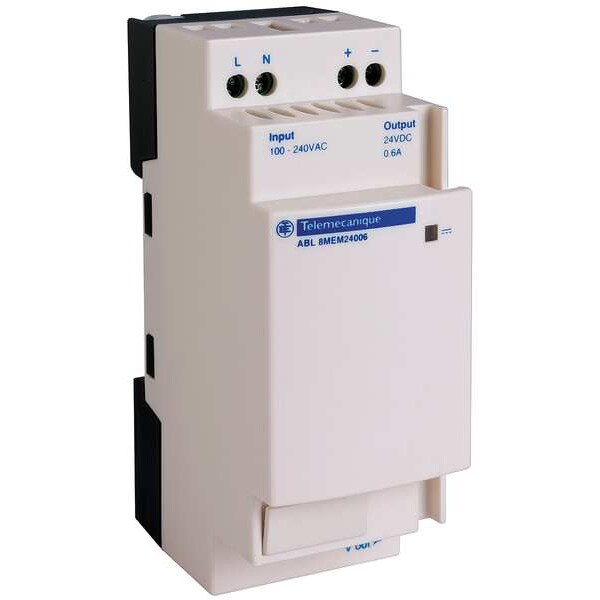

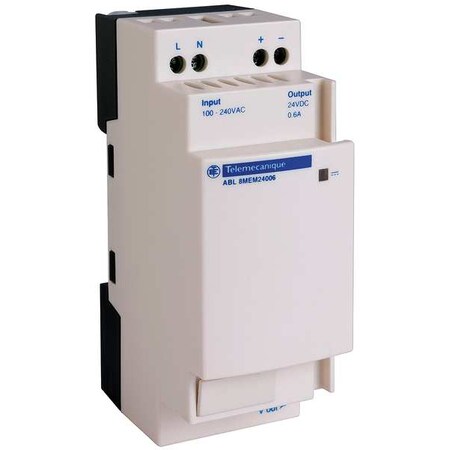

Dc Power Supply, 100 to 240V AC, 120 to 250V DC, 24V DC, 15W, 0.6, Din Rail/Panel (Discontinued)
Mfr # ABL8MEM24006
Zoro # G7468115
Free Shipping & Returns
This Product is Discontinued
Key Features
- Input Voltage 100 to 240V AC, 120 to 250V DC
- Output Voltage 24V DC
- Power Rating 15W
- Output Amps 0.6
- Mounting Din Rail/Panel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schneider Electric
- MFR # ABL8MEM24006
- Zoro # G7468115
- UPC # 785901490036
- Country of Origin China
- Category Power Supplies
Dimensions
Height | 4.33 in |
Width | 1.42 in |
Depth | 2.32 in |
Details
Item | Dc Power Supply |
Input Voltage | 100 to 240V AC, 120 to 250V DC |
Output Voltage | 24V DC |
Power Rating | 15W |
Output Amps | 0.6 |
Mounting | Din Rail/Panel |
Case Material | Plastic Case |
Phase - Electrical | Single |
Style | Switching |
Hz | 50 to 60 Hz |
Standards | cCSAus (CSA22.2 n950-1), CTick, cUL us 508, e, EN 55022 Class B, IEC/EN 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61204-3, RoHS, SELV, TÃœV EN 60950-1 |
IP Rating | 20 |
Series | ABL8 |
Hold Up Time | Greater Than 10 msec @ 100V AC, Greater Than 150 msec @ 230V AC |
NEMA Rating | 1 |
Status Indicator | Green LED |
Operating Temp. Range | -13 Degrees to 158 Degrees F |
Peak Amps | 0.84 |
Features | A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size |
Output Noise | 250mV |
Description
DC Power Supply, Input Voltage 100 to 240 V AC, 120 to 250V DC, Output Voltage 24V DC, Power Rating 15W, Output Amps 0.6, Mounting DIN Rail/Panel, Switching, Case Material Plastic Case, Height 4.33 in, Width 1.42 in, Depth 2.32 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 0.84, IP Rating 20, Output Noise 250mV, Hold Up Time Greater Than 10 msec @ 100V AC, Greater Than 150 msec @ 230V AC, Status Indicator Green LED, NEMA Rating 1
