This Product is Discontinued
Schneider Electric

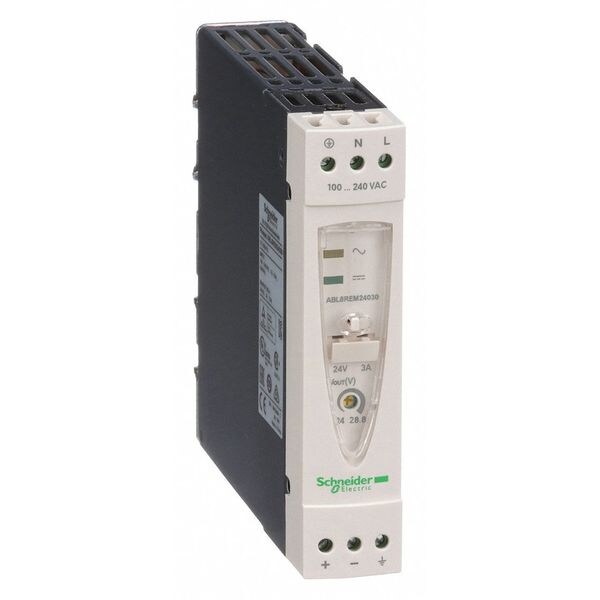

Dc Power Supply, 100 to 240V AC, 110 to 220V DC, 24V DC, 72W, 3, Din Rail (Discontinued)
Mfr # ABL8REM24030
Zoro # G7463181
Free Shipping & Returns
This Product is Discontinued
Key Features
- Input Voltage 100 to 240V AC, 110 to 220V DC
- Output Voltage 24V DC
- Power Rating 72W
- Output Amps 3
- Mounting Din Rail
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schneider Electric
- MFR # ABL8REM24030
- Zoro # G7463181
- UPC # 785901616849
- Country of Origin China
- Category Power Supplies
Dimensions
Height | 4.72 in |
Width | 1.06 in |
Depth | 4.72 in |
Details
Item | Dc Power Supply |
Input Voltage | 100 to 240V AC, 110 to 220V DC |
Output Voltage | 24V DC |
Power Rating | 72W |
Output Amps | 3 |
Mounting | Din Rail |
Case Material | Plastic Case |
Phase - Electrical | Single |
Style | Switching |
Hz | 50 to 60 Hz |
IP Rating | 20 |
Series | ABL8 |
Operating Temp. Range | 32 Degrees to 140 Degrees F |
Features | A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size |
Standards | File CCN, cUL us 508, cCSAus (CSA22.2 n950-1), File Class, TV 60950-1, e, CTick, RoHS, IEC/EN 60950, IEC/EN 61496-1-2, SELV IEC/EN 60950, SELV, EN 50081-1, IEC 61000-6-2 (EN 50082-2) |
Peak Amps | 3.3 |
Output Noise | Less Than or Equal to 200mV |
Hold Up Time | Greater Than 10 msec @ 100V AC, Greater Than 10 msec @ 240V AC |
Status Indicator | Green/Orange LED |
NEMA Rating | 1 |
Description
DC Power Supply, Input Voltage 100 to 240 V AC, 110 to 220 V DC, Output Voltage 24V DC, Power Rating 72W, Output Amps 3, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 4.72 in, Width 1.06 in, Depth 4.72 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 3.3, IP Rating 20, Output Noise Less Than or Equal to 200mV, Hold Up Time Greater Than 10 msec @ 100V AC, Greater Than 10 msec @ 240V AC, Status Indicator Green/Orange LED, NEMA Rating 1
