Shop All Push Button Control Stations
Schneider Electric

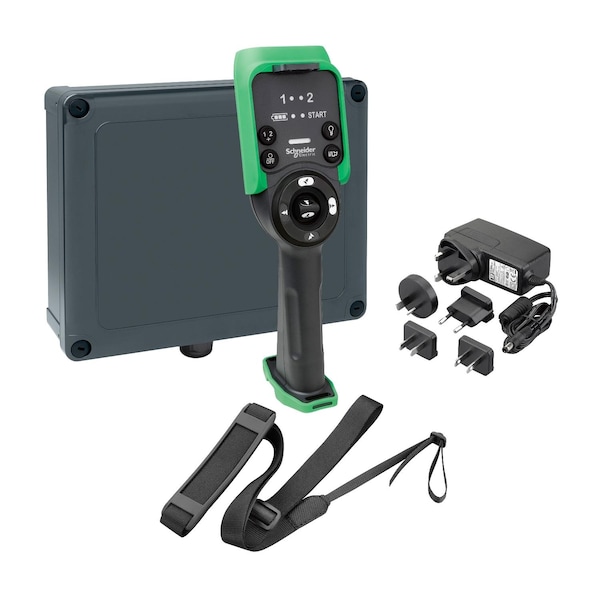

Control station, Harmony eXLhoist, standard, XARS8L12W system with charger, shoulder belt, cable USB RJ45 and config software
Mfr # XARSK8L12W
Zoro # G7654947
Free Shipping & Returns
$1,498.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Type of Operator wireless
- Standards IEC 60204-1 safety, ISO 13849-1 safety, IEC 62061 safety, IEC 61508 safety, ISO 13850 safety, IEC 60204-32 hoisting applications, ETSI EN 301 489-1 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-17 radio, ETSI EN 300 440-2 radio, ETSI EN 300 328 radio, FCC part 15 radio, RSS GEN issue 3 radio, RSS 210 issue 8 radio, ARIB STD-T81 radio
- Application stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061 ; emergency stop function SIL 3 maximum can reach PL e/category 4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061, 1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 ; material handling || hoisting applications
- Cable Entry cable gland
- Relative Humidity 0-95 % -20-45°C storage
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # XARSK8L12W
- Zoro # G7654947
- Country of Origin France
- Category Push Button Control Stations
Details
Item | Complete Kit Zart8LZarb12WZarc01Cable |
Type of Operator | wireless |
Standards | IEC 60204-1 safety, ISO 13849-1 safety, IEC 62061 safety, IEC 61508 safety, ISO 13850 safety, IEC 60204-32 hoisting applications, ETSI EN 301 489-1 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-17 radio, ETSI EN 300 440-2 radio, ETSI EN 300 328 radio, FCC part 15 radio, RSS GEN issue 3 radio, RSS 210 issue 8 radio, ARIB STD-T81 radio |
Application | stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061 ; emergency stop function SIL 3 maximum can reach PL e/category 4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061, 1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 ; material handling || hoisting applications |
Cable Entry | cable gland |
Relative Humidity | 0-95 % -20-45°C storage |
Radio Agreement | SRRC, ICASA, FCC, ARIB, RSS, ANATEL |
Transmission Frequency | 2.4 GHz |
Product or Component Type | control station |
Number of Channels | 50 |
Kit Composition | cable, remote control, shoulder belt, base station, configuration software |
Communication Network Type | wireless bluetooth low energy |
Product Specific Application | material handling, hoisting applications |
Control Station Application | stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1 |
Control Station Type | wireless |
Electromagnetic Compatibility | resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3 |
Operating Distance | 100 m in free air |
Range of Product | Harmony eXLhoist |
Device Short Name | XARS |
Description
This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system, accessories, USB/RJ45 cable and configuration software. It is designed for hoisting or material handling applications. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.
Documents & Resources
Restrictions
- WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
