Shop All Magnetic Contactors
Schneider Electric

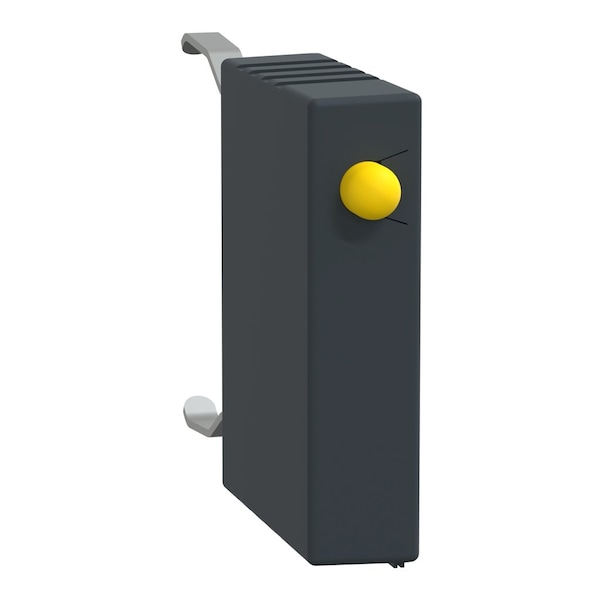

Contactor+Relay Suppressor 130250V
Mfr # LA4KE1UG
Zoro # G3510538
product price: $11.55
/ea
$11.55
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Height 26 mm
- Width 6 mm
- Depth 22 mm
- Standards UL 60947-5-1 || CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1
- Ambient Air Temperature For Storage -50-80°C
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # LA4KE1UG
- Zoro # G3510538
- UPC # 785901870050
- Country of Origin Indonesia
- Category Magnetic Contactors
Dimensions
| Height | 26 mm |
| Width | 6 mm |
| Depth | 22 mm |
Details
| Item | Contactor+Relay Suppressor 130250V |
| Standards | UL 60947-5-1 || CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -50-80°C |
| Device Short Name | LA4K |
| Suppressor Technology | varistor (peak limiting) |
| Product Or Component Type | suppressor module |
| Protective Treatment | TCIEC 60068 || TCDIN 50016 |
| Range | TeSys |
| Product Compatibility | LC1K || LP1K || LP4K || CA2K || CA3K |
| Ip Degree Of Protection | IP2XIEC 60529 |
| Product Certifications | UL || CSA || CE || UKCA |
| Ambient Air Temperature For Operation | -25-50°C |
| Mounting Mode | clip-on |
| Local Signalling | LED |
| Maximum Peak Voltage | 2 Uc |
| Mounting Location | front side |
| [Uc] Control Circuit Voltage | 130 to 250 V AC || 130 to 250 V DC |
Description
Contactor+Relay Suppressor 130250V
