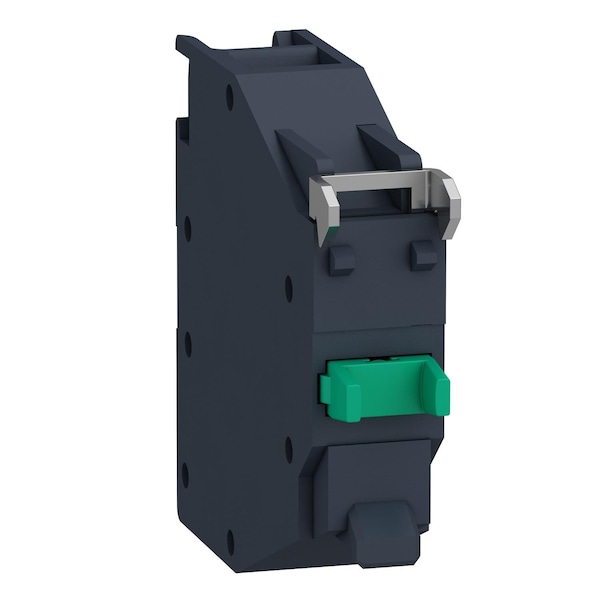

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NO

Mfr # ZBE101GEX
Zoro # G0200858

$46.35

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Contact Form 1 NO
Terminal Connection Screw Clamp
Safety Rating EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01
NEMA Contact Rating Designation A600/Q300
Application Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZBE101GEX
Zoro # G0200858
Country of Origin France
Category Terminal Blocks

Dimensions

Cad Overall Height	10 mm
Cad Overall Width	38 mm
Cad Overall Depth	42.4 mm

Details

Item	Contact Block
Contact Form	1 NO
Terminal Connection	Screw Clamp
Safety Rating	EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01
NEMA Contact Rating Designation	A600/Q300
Application	Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines
Standards	EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01
Protective Treatment	TH
[Ui] Rated Insulation Voltage	415 V
Operating Travel	1.657 mm engagement point) \|\| 4.622 mm changing state point) \|\| 4.452 mm total travel)
Contacts Type And Composition	1 NO
Connections - Terminals	screw clamp terminals, 2 x 1.5 mm² without cable end \|\| screw clamp terminals, 1 x 2.5 mm² with cable end
Tightening Torque	0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation	-50-75°C
Mounting Of Block	front mounting
Contact Block Type	single
Operating Force	3.962 N
Contacts Usage	gas protected contact
Device Short Name	ZBE
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Contact Operation	standard
Ambient Air Temperature For Storage	-50-70°C
Product Certifications	cULus
Marking	Ex db eb IIC Gb
Mechanical Durability	1000000 cycles
Product Or Component Type	contact block
[Ie] Rated Operational Current	1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 \|\| 3 A 240 V, AC, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC, A600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 \|\| 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Environmental Characteristic	hazardous location class I division 2
Positive Opening	without
Rated Operational Current	1.9 A 380 V, AC, A600 IEC 60947-5-1; 3 A 240 V, AC, A600 IEC 60947-5-1; 6 A 120 V, AC, A600 IEC 60947-5-1; 0.27 A 250 V, DC, Q300 IEC 60947-5-1; 0.55 A 125 V, DC, Q300 IEC 60947-5-1; 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Range of Product	Harmony XB4

Description

Contact Block, Contact Form 1 NO, Application Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines, NEMA Contact Rating Designation A600/Q300, Terminal Connection Screw Clamp, Standards EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01, Safety Rating EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01

Documents & Resources

Technical Guide Opens PDF in new window
