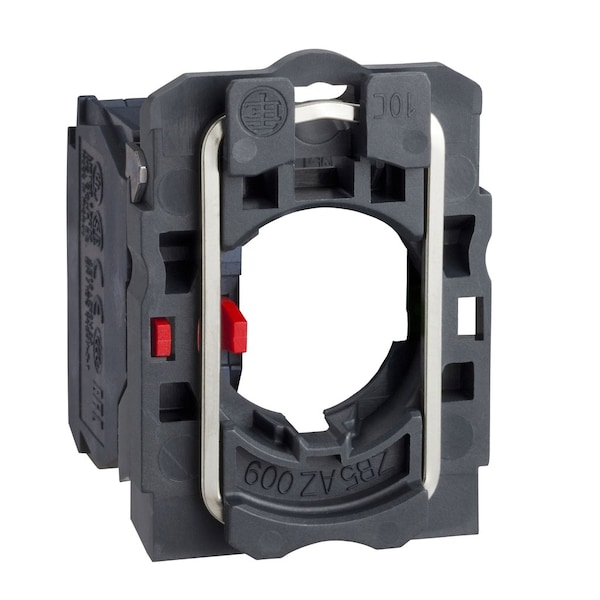

Contact Block, Black, 1NC, 22 mm, ZB5

Mfr # ZB5AZ102TQ
Zoro # G0196807

$14.39

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

For Use With ZB5AZ902
Size 22 mm
Application Building and Infrastructure, Industry
Contact Form 1NC
Color Black

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB5AZ102TQ
Zoro # G0196807
UPC #
389110894851
Country of Origin France
Category Push Button Contact Blocks

Dimensions

Size	22 mm
Connection Size	22 mm
Manufacturer Warranty Length	18 mo

Details

Item	Contact Block
For Use With	ZB5AZ902
Application	Building and Infrastructure, Industry
Contact Form	1NC
Color	Black
Standards	CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
NEMA Contact Rating Designation	A600/Q600
Terminal Connection	Screw Clamp
Safety Rating	CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Ip Degree Of Protection	IP20 IEC 60529
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN 60947-1 \|\| screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN 60947-1
Protective Treatment	TH
Contact Block Type	single
Ambient Air Temperature For Operation	-40-70Â°C
Device Composition	body \|\| fixing collar
Fixing Collar Material	plastic
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type	complete body/contact assembly
Positive Opening	with EN/IEC 60947-5-1 appendix K
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Material	silver alloy (Ag/Ni)
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Contact Operation	slow-break
Head Type	standard
Ambient Air Temperature For Storage	-40-70Â°C
Terminals Description Iso N°1	(11-12)NC
Device Short Name	ZB5
Mechanical Durability	10000000 cycles
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage	600 V 3)EN 60947-1
Electrical Reliability	Î» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 \|\| Î» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Product Certifications	LROS (Lloyds register of shipping) \|\| DNV \|\| BV \|\| GL \|\| CSA \|\| UL
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
Operating Travel	1.5 mm NC changing electrical state) \|\| 4.3 mm total travel)
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Tightening Torque	0.8-1.2 N.m EN 60947-1
Contacts Type And Composition	1 NC
Contacts Usage	standard contacts
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 60947-1
Operating Force	2 N NC changing electrical state
Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Rated Insulation Voltage	600 V 3)IEC 60947-1
Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Terminals Description Iso NÂ°1	(11-12)NC
Switch Action	Momentary
Compatible Operator	Push Button
DC Contact Rating	0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Terminal Connection Type	Screw Clamp Terminals
Compatible with Manufacturer Model Number	ZB5AZ902
AC Contact Rating	1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mounting Block	Mounting Block Included
Compatible with Series	ZB5

Description

Contact Block, Contact Form 1NC, For Use With ZB5AZ902, 22 mm, Application Building and Infrastructure, Industry, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw Clamp, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Safety Rating CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
