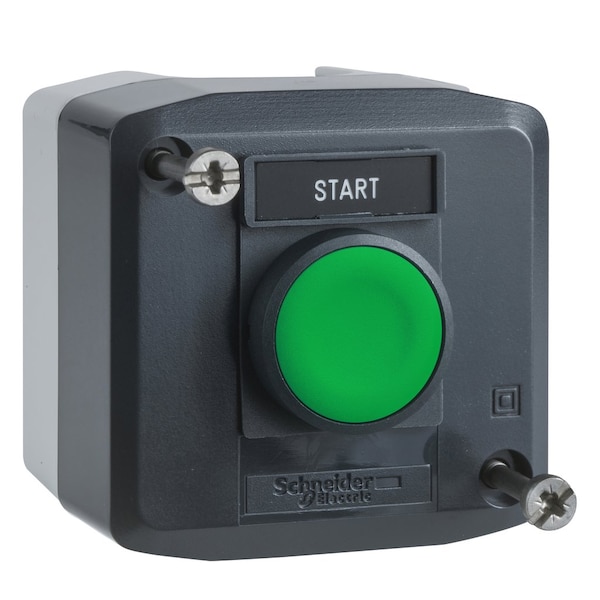

Complete control station, Harmony XALD, XALK, dark grey, 1 green flush push button 22mm spring return 1 NO Start

Mfr # XALD101H29
Zoro # G4608542

$63.39

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Material polycarbonate
Standards JIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Ambient Air Temperature For Operation -40-70°C
Ambient Air Temperature For Storage -40-70°C
Marking Location marking on legend holder

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XALD101H29
Zoro # G4608542
Country of Origin France
Category Push Button Switches

Details

Item	Dark grey station - 1 green flush pushbu
Material	polycarbonate
Standards	JIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Ambient Air Temperature For Operation	-40-70°C
Ambient Air Temperature For Storage	-40-70°C
Marking Location	marking on legend holder
Vibration Resistance	5 gn 12-500 Hz)IEC 60068-2-6
Colour of Base of Enclosure	light grey RAL 7035)
[Ie] Rated Operational Current	6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Operators Description	green ''START'' 1 NO
Shape of Screw Head	cross Philips no 1, cross pozidriv No 1, slotted flat Ã˜ 4 mm, slotted flat Ã˜ 5.5 mm
Resistance To High Pressure Washer	7000000 Pa 55°C 0.1 m
Nema Degree of Protection	NEMA 13, NEMA 4X
Mechanical Durability	10000000 cycles
Contact Operation	slow-break
Positive Opening	without
Cable Entry	1 knock-out for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Colour of Cover	dark grey RAL 7016)
Contacts Material	silver alloy (Ag/Ni)
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Operating Force	3.8 N NO changing electrical state
Overvoltage Category	class II IEC 60536
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Ip Degree of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Range of Product	Harmony XALD
Ik Degree of Protection	IK03 conforming to IEC 62262
Device Short Name	XALD
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Product or Component Type	complete control station
Protective Treatment	TH
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Control Station Composition	1 flush push-button, green 1 NO START
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Control Station Application	start function
Product Destination	for XB5 Ã˜ 22 mm control and signalling units
Operating Travel	2.6 mm NO changing electrical state), 4.3 mm total travel)
Operator Profile	1 flush push-button
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Ik Degree Of Protection	IK03 EN 50102
Product Or Component Type	complete control station
Colour Of Base Of Enclosure	light grey RAL 7035)
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Colour Of Cover	dark grey RAL 7016)

Description

This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
