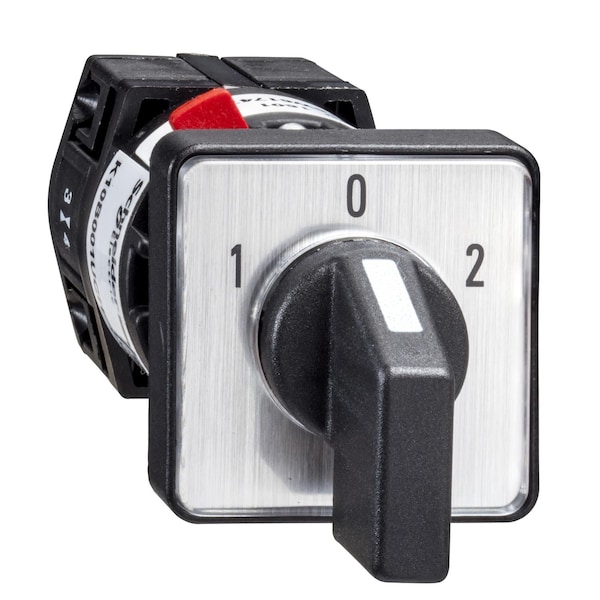

Complete cam switch, Harmony K1, K2, cam changeover switch, 16mm or 22mm , plastic, 3 poles, position 0, 60degrees, 10A, 30x30mm, marked 1 0 2

Mfr # K10F003UCH
Zoro # G000905265

$201.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
Presentation Of Legend with metallic, 1 - 0 - 2 black
Cad Overall Width 30 mm
Fixing Mode Ø 16 or 22 mm hole
Contact Operation slow-break

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # K10F003UCH
Zoro # G000905265
Country of Origin Austria
Category CAM Switches

Dimensions

Cad Overall Width	30 mm
Cad Overall Depth	100 mm
Cad Overall Height	30 mm

Details

Item	Cam changeover switch - 3-pole - 60 - 10
Standards	CENELEC EN 50013 \|\| EN/IEC 60947-3 \|\| EN/IEC 60947-5-1
Presentation Of Legend	with metallic, 1 - 0 - 2 black
Fixing Mode	Ø 16 or 22 mm hole
Contact Operation	slow-break
Switching Angle	60°
Cam Switch Function	changeover switch
Rated Operational Power In W	1800 W AC-23A, 220/240 V 3 phase \|\| 370 W AC-23A, 110/120 V 1 phase \|\| 750 W AC-23A, 220/240 V 1 phase
Product Or Component Type	complete cam switch
Ambient Air Temperature For Operation	-20-55°C
Type Of Operator	Black handle
Short-Circuit Protection	10 A cartridge fuse gG
Mechanical Durability	1000000 cycles
Electrical Durability	100000000 cycles
Product Certifications	cULus
Electrical Connection	captive screw clamp terminals 2 x 1.5 mm²
Rotary Handle Padlocking	without
Poles Description	3P
Switching Positions	right: 0° - 60° \|\| left: 0° - 300°
Product Mounting	front mounting
Rated Power In Hp	1 hp 220/240 V AC, 3 phase \|\| 0.33 hp 110/120 V AC, 1 phase \|\| 0.75 hp 110/120 V AC, 3 phase \|\| 0.75 hp 220/240 V AC, 1 phase
Electrical Shock Protection Class	class II IEC 60536
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
[Ie] Rated Operational Current Ac	10 A 400 V AC-1 \|\| 10 A 400 V AC-21A \|\| 3 A 240 V AC-15 \|\| 6 A 120 V AC-15
Ambient Air Temperature For Storage	-40-70°C
Component Name	K10
[Ui] Rated Insulation Voltage	440 V 3)IEC 60947-1
Off Position	with Off position
Cam Switch Head Type	with front plate 30 x 30 mm
[Ie] Rated Operational Current Dc	10 A 24 V resistive \|\| 0.3 A 220 V resistive \|\| 0.7 A 110 V resistive
Ip Degree Of Protection	contact block IP20 \|\| operating head IP65 IEC 60529
[Ith] Conventional Free Air Thermal Current	10 A
Protective Treatment	TC
Conventional Free Air Thermal Current	10 A
Rated Operational Current AC	10 A 400 V AC-1; 10 A 400 V AC-21A; 3 A 240 V AC-15; 6 A 120 V AC-15
Rated Operational Current DC	10 A 24 V resistive; 0.3 A 220 V resistive; 0.7 A 110 V resistive
Return	Without
Range of Product	Harmony K

Description

This Harmony K10 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has 1 - 0 - 2 marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
