  9. ClimaSys PTC heating resistance 50W, 110-250V insulate
Shop All Enclosure Parts
Schneider Electric

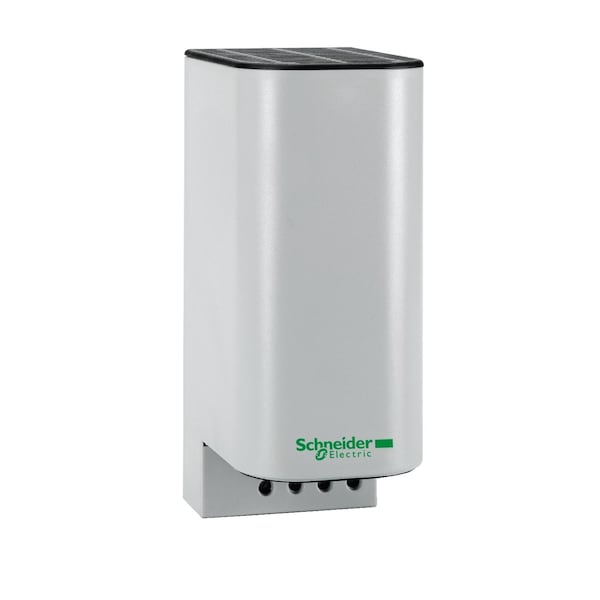

ClimaSys PTC heating resistance 50W, 110-250V insulate

product price: $58.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material body extruded aluminium, Cover plastic
  • Height external 110 mm
  • Standards UL, VDE
  • Depth external 90 mm
  • Width external 60 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height external 110 mm
Depth external 90 mm
Width external 60 mm

Details

Item ClimaSys PTC heating resistance 50W,110-
Material body extruded aluminium, Cover plastic
Standards UL, VDE
Ip Degree of Protection IP20
Power Range 50 W
Operating Position vertical
Mounting Support 35 mm DIN rail
Electrical Insulation Class class II
Product or Component Type resistance heater
Condition of Use electrical protection is needed, air sealed enclosure, heaters must be installed with a thermal controller
Range ClimaSys
Fixing Mode by clips
Electrical Connection 4 screw terminals 2.5 mm²
Product Name ClimaSys CR
Ambient Air Temperature For Operation -40-70°C
Input Voltage 110...250 V AC 50/60 Hz
Ip Degree Of Protection IP20
Product Or Component Type resistance heater
Condition Of Use electrical protection is needed || air sealed enclosure || heaters must be installed with a thermal controller
Product Certifications UL || VDE

Description

ClimaSys PTC heating resistance insulate. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm2. 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
