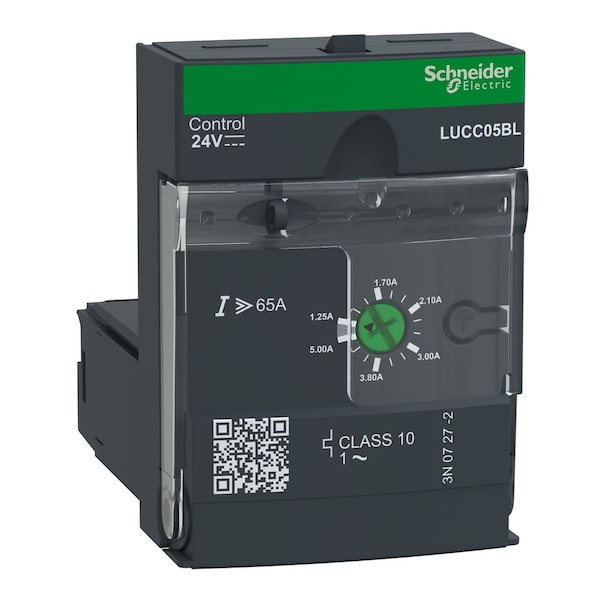

Advcntrlunitcl101Ph 1255A 24Vdc

Mfr # LUCC05BL
Zoro # G0852008

$149.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Overload Relay Amp Setting 1.25 to 5 A
Coil Volts 24V DC
Features Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Hz 40 to 60 Hz
Height 66 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # LUCC05BL
Zoro # G0852008
UPC #
785901222675
Country of Origin France
Category Magnetic Motor Starters

Dimensions

Height	66 mm
Width	45 mm
Depth	60 mm

Details

Item	Advcntrlunitcl101Ph 1255A 24Vdc
Overload Relay Amp Setting	1.25 to 5 A
Coil Volts	24V DC
Features	Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Hz	40 to 60 Hz
Standards	EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Operating Voltage	690V AC
Rated Impulse Withstand Voltage	6 kV IEC 60947-6-2
Shock Resistance	10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
Typical Current Consumption	130 mA 24 V DC I maximum while closing with LUB12; 220 mA 24 V DC I maximum while closing with LUB32; 220 mA 24 V DC I maximum while closing with LUB38; 60 mA 24 V DC I rms sealed with LUB12; 80 mA 24 V DC I rms sealed with LUB32; 80 mA 24 V DC I rms sealed with LUB38
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Heat Dissipation	2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38
Rated Operational Voltage	690 V AC
Protective Treatment	TH IEC 60068
Control Circuit Voltage	24 V DC
Reset	Manual reset
Operating Altitude	6561.68 ft (2000 m)
Resistance To Radiated Fields	9.14 V/m (10 V/m) 3 IEC 61000-4-3
Fire Resistance	1760Â°F (960Â°C) parts supporting live components IEC 60695-2-12; 1202Â°F (650Â°C) IEC 60695-2-12
Immunity To Microbreaks	3 ms
Thermal Overload Class	Class 10 40 to 60 Hz -13 to 131Â°F (-25 to 55Â°C) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 131Â°F (-25 to 55Â°C) UL 508
Compatibility Code	LUCC
Safe Separation Of Circuit	400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Product Or Component Type	Advanced control unit
Main Function Available	Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Earth fault protection
Load Type	Single-phase motor
Ambient Air Temperature For Operation	-13 to 158Â°F (-25 to 70Â°C)
Fixing Mode	Plug-in front face)
Product Compatibility	Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12BL; Reversing contactor breaker LU2B32BL; Reversing contactor breaker LU2B38BL
Utilisation Category	AC-43; AC-41; AC-44
Operating Time	35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB12 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit
Product Specific Application	Basic protection and advanced functions, communication
Resistance To Electrostatic Discharge	8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
Product Name	TeSys Ultra
Vibration Resistance	2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6
Ambient Air Temperature For Storage	-40 to 185Â°F (-40 to 85Â°C)
Device Application	Motor control; Motor protection
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
Control Circuit Voltage Limits	20 to 27 V DC 24 V in operation; 14.5 V DC 24 V drop-out
Motor Power KW	0.55 kW 400 to 440 V AC 50/60 Hz 1 phase
Rated Insulation Voltage	690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
Tripping Threshold	14.2 x Ir +/- 20%
Product Certifications	CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine
IP Degree Of Protection	IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
Immunity To Voltage Dips	70% / 500 ms IEC 61000-4-11
