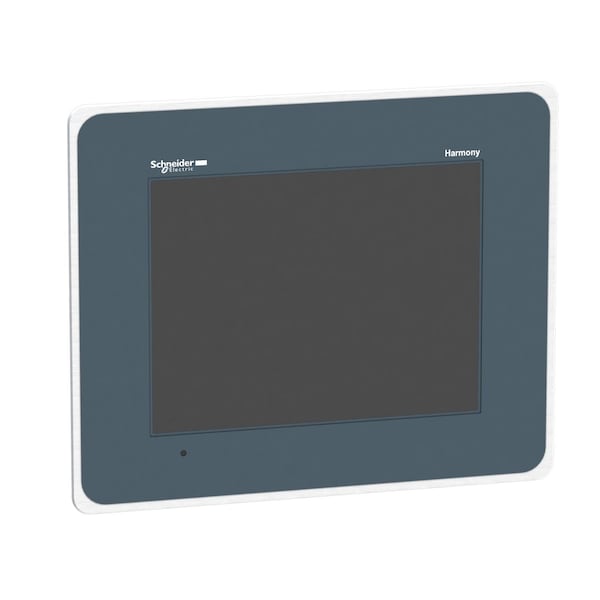

Advanced touchscreen panel, Harmony GTO, stainless, 640 x 480pixels VGA, 10.4inch TFT, 96MB

Mfr # HMIGTO5315
Zoro # G0130993

$6,634.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Depth 57 mm
Height 258.5 mm
Width 316.5 mm
Standards IEC 61131-2, IEC 61000-6-2, UL 508
Maximum Power Consumption In W 12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # HMIGTO5315
Zoro # G0130993
Country of Origin Indonesia
Category Programmable Controller Accessories

Dimensions

Depth	57 mm
Height	258.5 mm
Width	316.5 mm
Display Size	10.4 inch

Details

Item	104 Color Touch Panel Vga Stainless
Standards	IEC 61131-2, IEC 61000-6-2, UL 508
Maximum Power Consumption In W	12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W
Vibration Resistance	3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Battery Type	lithium internal RAM 100 days 5 day(s) 10 year(s)
Product or Component Type	advanced touchscreen panel
Data Backed Up	512 KB internal RAM SRAM)
Ambient Air Temperature For Storage	-20-60°C
Display Colour	65536 colours
Touch Sensitive Zone	1024 x 1024
Range of Product	Harmony GTO
Operating System	Harmony
Supply Voltage Limits	19.2-28.8 V
Touch Panel	resistive film, 1000000 cycles
Resistance To Electrostatic Discharge	6 kV contact discharge IEC 61000-4-2 level 3
Ambient Air Temperature For Operation	0-55°C
Relative Humidity	10-90 % without condensation
Software Designation	Vijeo Designer configuration software >= V6.1
Inrush Current	30 A
Integrated Connection Type	COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Front Material	stainless steel 304
Memory Description	flash EPROM, 96 MB
Display Resolution	640 x 480 pixels VGA
Local Signalling	status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
[Us] Rated Supply Voltage	24 V DC
Provided Equipment	1 protective cover
Shock Resistance	147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Nema Degree of Protection	NEMA 4X front panel (indoor use)
Fixing Mode	by 8 nuts, by 4 L brackets
Display Type	backlit colour TFT LCD
Enclosure Material	PPT
Terminal Type	touchscreen display
Product Mounting	flush mounting
Type of Cooling	natural convection
Brightness	16 levels by touch panel, 16 levels by software
Ip Degree of Protection	IP20 IEC 60529 rear panel), IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel)
Backlight Lifespan	50000 hours white 25°C
Data Storage Equipment	SD card, <= 32 GB, SDHC card, <= 32 GB
Operating Altitude	< 6561.68 ft (2000 m)
Supply	external source
Ip Degree Of Protection	IP20 IEC 60529 rear panel) \|\| IP66K IEC 60529 front panel) \|\| IP66K DIN 40050-9 front panel)
Product Or Component Type	advanced touchscreen panel
Downloadable Protocols	Schneider Electric Modicon Modbus \|\| Schneider Electric Modicon Uni-TE \|\| Schneider Electric Modicon Modbus Plus \|\| Schneider Electric Modicon FIPWAY \|\| Mitsubishi Melsec third party protocols \|\| Omron Sysmac third party protocols \|\| Rockwell Automation Allen-Bradley third party protocols \|\| Siemens Simatic third party protocols \|\| Schneider Electric Modicon Modbus TCP
Display type	backlit colour TFT LCD
Product Certifications	C-tick \|\| cULus \|\| CE \|\| KCC \|\| UKCA \|\| UKEX
Type Of Cooling	natural convection
Character Font	Chinese (simplified Chinese); Japanese (ANK, Kanji); Taiwanese (traditional Chinese); Korean; ASCII
Nema Degree Of Protection	NEMA 4X front panel (indoor use)

Description

This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4 color TFT LCD display with a stainless steel frame, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
