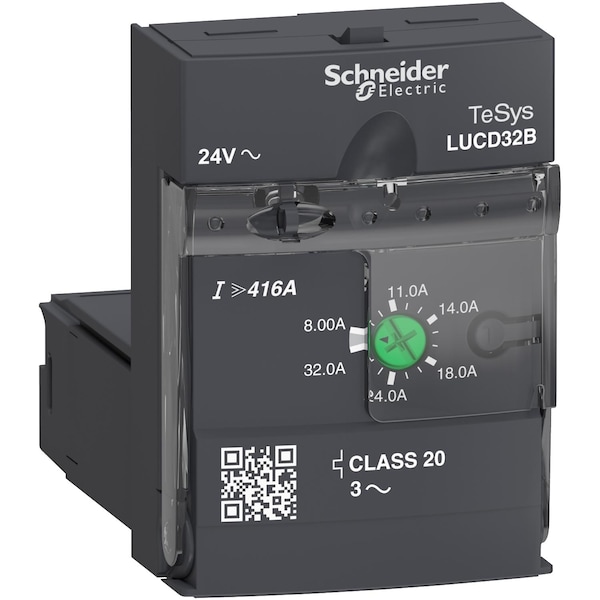

Advanced control unit, TeSys Ultra, 8A to 32A, 3P motors, protection & diagnostic, class 20, coil 24VAC

Mfr # LUCD32B
Zoro # G0852699

$152.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Overload Relay Amp Setting 8 to 32 A
Coil Volts 24V AC
Hz 40 to 60 Hz
Standards EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Features Protection against phase failure and phase imbalance; Manual reset; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # LUCD32B
Zoro # G0852699
UPC #
785901412724
Country of Origin France
Category Magnetic Motor Starters

Dimensions

Depth	60 mm
Width	45 mm
Height	66 mm

Details

Item	Advcntrlunitcl203Ph 832A 24Vac
Overload Relay Amp Setting	8 to 32 A
Coil Volts	24V AC
Hz	40 to 60 Hz
Standards	EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Features	Protection against phase failure and phase imbalance; Manual reset; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Operating Voltage	690V AC
Shock Resistance	10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
Product Specific Application	Basic protection and advanced functions, communication
Load Type	3-phase motor self-cooled
Non-Dissipating Shock Wave	1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2
Vibration Resistance	2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6
Typical Current Consumption	220 mA 24 V AC I maximum while closing with LUB32; 220 mA 24 V AC I maximum while closing with LUB38; 90 mA 24 V AC I rms sealed with LUB32; 90 mA 24 V AC I rms sealed with LUB38
Tripping Threshold	14.2 x Ir +/- 20%
Product Certifications	CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine
Utilisation Category	AC-41; AC-44; AC-43
Ambient Air Temperature For Storage	-40 to 185°F (-40 to 85°C)
Safe Separation Of Circuit	400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Fixing Mode	Plug-in front face)
Protective Treatment	TH IEC 60068
Phase Failure Sensitivity	Yes
Immunity To Microbreaks	3 ms
Rated Operational Voltage	690 V AC
Resistance To Radiated Fields	9.14 V/m (10 V/m) 3 IEC 61000-4-3
Rated Impulse Withstand Voltage	6 kV IEC 60947-6-2
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
Main Function Available	Protection against phase failure and phase imbalance; Manual reset; Protection against overload and short-circuit; Earth fault protection
Fire Resistance	1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Resistance To Electrostatic Discharge	8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
Control Circuit Voltage Limits	20 to 26.5 V AC 24 V in operation; 14.5 V AC 24 V drop-out
Immunity To Voltage Dips	70% / 500 ms IEC 61000-4-11
Product Compatibility	Power base LUB32; Power base LUB38; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B32B
IP Degree Of Protection	IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
Ambient Air Temperature For Operation	-13 to 158°F (-25 to 70°C)
Product Name	TeSys Ultra
Operating Altitude	6561.68 ft (2000 m)
Reset	Manual reset
Device Application	Motor control; Motor protection
Rated Insulation Voltage	690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
Heat Dissipation	3 W control circuit with LUB32; 3 W control circuit with LUB38
Compatibility Code	LUCD
Motor Power KW	15 kW 400 to 440 V AC 50/60 Hz; 15 kW 500 V AC 50/60 Hz; 18.5 kW 690 V AC 50/60 Hz
Product Or Component Type	Advanced control unit
Thermal Overload Class	Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508
Control Circuit Voltage	24 V AC
Operating Time	35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit
Range	TeSys
Thermal Protection Adjustment Range	8-32 A
Function Available	protection against phase failure and phase imbalance, manual reset, protection against overload and short-circuit, earth fault protection
Network Frequency	40...60 Hz
[Ui] Rated Insulation Voltage	690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1

Description

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
