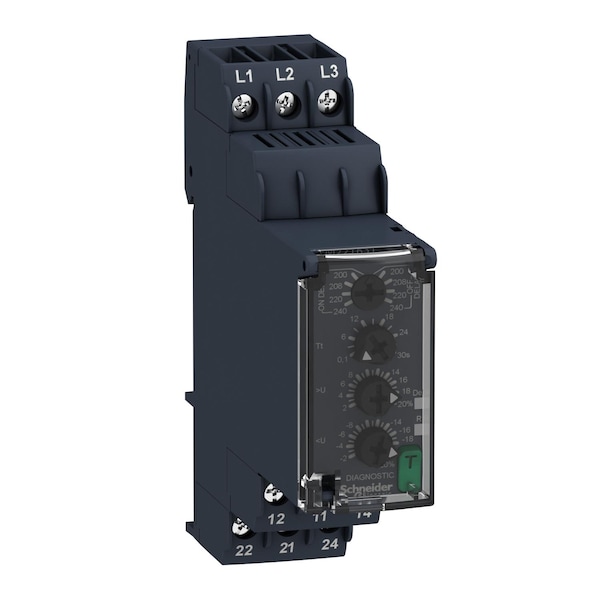

3-phase control relay, Harmony Control Relays, 8A, 2CO, overvoltage and undervoltage detection, 200...240V AC

Mfr # RM22TR31
Zoro # G7121631

$165.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Standards EN/IEC 60255-1
Response Time <= 300 ms
Width 22.5 mm
Relay Monitored Parameters phase sequence || phase failure detection || overvoltage and undervoltage detection
Switching Threshold Drift <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RM22TR31
Zoro # G7121631
Country of Origin Indonesia
Category Control Relays

Dimensions

Width

22.5 mm

Details

Standards	EN/IEC 60255-1
Response Time	<= 300 ms
Item	Phase Ctrl Relay,200-240VAC In 8A,Dpdt
Relay Monitored Parameters	phase sequence \|\| phase failure detection \|\| overvoltage and undervoltage detection
Switching Threshold Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature \|\| <= 1 % within the supply voltage range
[Us] Rated Supply Voltage	200...240 V AC
Voltage Detection Threshold	< 100 V AC
Repeat Accuracy	+/- 0.5 % input and measurement circuit \|\| +/- 3 % time delay
Maximum Switching Current	8 A AC
Time Delay Type	adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
Output Contacts	2 C/O
Status Led	LED (Yellow) relay ON \|\| LED (Green) power ON
Tightening Torque	0.6-1 N.m IEC 60947-1
Electromagnetic Compatibility	immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 \|\| immunity for industrial environments EN/IEC 61000-6-2 \|\| emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 \|\| emission standard for industrial environments EN/IEC 61000-6-4 \|\| electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 \|\| electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 \|\| radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 \|\| electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 \|\| electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 \|\| surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 \|\| surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 \|\| conducted and radiated emissionsclass B group 1 CISPR 11 \|\| conducted and radiated emissionsclass B CISPR 22
Relay Type	control relay
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-27 \|\| 5 gn 11 ms) in operation IEC 60068-2-27
Insulation Resistance	> 100 MOhm 500 V DC IEC 60255-27
Mounting Support	35 mm DIN rail conforming to EN/IEC 60715
Relay Name	RM22TR
Switching Capacity In Va	2000 VA
Maximum Switching Voltage	250 V AC
Maximum Measuring Cycle	150 ms measurement cycle as true rms value
Product Or Component Type	3-phase control relay
Control Circuit Voltage Limits	20 % + 20 % Un
Supply Frequency	50...60 Hz +/- 10 %
Mounting Position	any position
Time Delay Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature \|\| <= 1 % within the supply voltage range
Hysteresis	2-2 % fixed selectable
Product Certifications	CSA \|\| CCC \|\| EAC \|\| RCM \|\| CE \|\| GL \|\| UL
Measurement Range	200...240 V voltage AC
Ambient Air Temperature For Storage	-40-70°C
Ip Degree Of Protection	IP20 IEC 60529 terminals) \|\| IP40 IEC 60529 housing) \|\| IP50 IEC 60529 front panel)
Measurement Error	< 1 % over the whole range with voltage variation \|\| < 0.05 %/°C with temperature variation
Utilisation Category	AC-15 IEC 60947-5-1 \|\| DC-13 IEC 60947-5-1 \|\| AC-1 IEC 60947-4-1 \|\| DC-1 IEC 60947-4-1
Phase	3 phase
Voltage Range	200...240 V phase to phase
Supply Voltage Limits	160-288 V AC
Contacts Type And Composition	2 C/O
Setting Accuracy Of The Switching Threshold	+/- 10 % of the full scale
Reset Time	1500 ms at maximum voltage
Immunity To Microbreaks	10 ms
Run-Up Delay At Power-Up	650 ms
Housing Material	self-extinguishing plastic
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Relative Humidity	93-97 % 25-55°C IEC 60068-2-30
Pollution Degree	3 IEC 60664-1 \|\| 3 UL 508
Mechanical Durability	10000000 cycles
Ambient Air Temperature For Operation	-20-50°C 60 Hz \|\| -20-60°C 50 Hz AC/DC
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 \|\| 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 \|\| 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 \|\| 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Overvoltage Category	III IEC 60664-1 \|\| III UL 508
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end \|\| screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end \|\| screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end \|\| screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Minimum Switching Current	10 mA 5 V DC
Power Consumption In Va	10-10 VA 240 V AC 60 Hz
Setting Accuracy Of Time Delay	0.916666666666667
Threshold Adjustment Voltage	2...20 % of Un selected
Electrical Durability	100000 cycles
Contacts Material	cadmium free
Range of Product	Harmony Control Relays
Control Type	with test button

Description

Phase Ctrl Relay,200-240VAC In 8A,Dpdt
