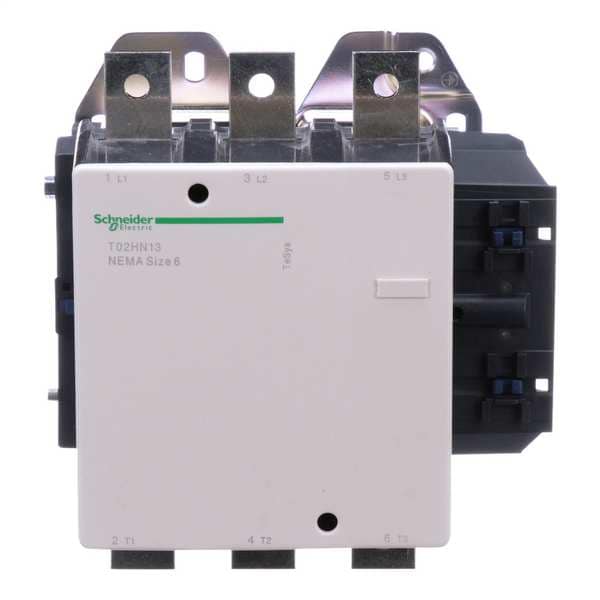

120VAC Non-Reversing Magnetic Contactor 3P 540A NEMA 6

Mfr # T02HN13F7
Zoro # G6383352

$15,722.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Action Non-Reversing
Full Load Amps 540 A
Number of Poles 3
Coil Volts 120V AC
NEMA Contactor Size 6

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # T02HN13F7
Zoro # G6383352
Country of Origin Czechia
Category Magnetic Contactors

Dimensions

NEMA Contactor Size	6
Height	9.4 in
Width	9.2 in
Depth	9.1 in
NEMA Size	6
Overall Width	8.9 in
Overall Height	9.37 in
Overall Depth	9.17 in

Details

Item	Magnetic Contactor
Action	Non-Reversing
Full Load Amps	540 A
Number of Poles	3
Coil Volts	120V AC
Reversing	No
HP @ 3 Phase - 208V	150 hp
HP @ 3 Phase - 240V	200 hp
HP @ 3 Phase - 575V	400 hp
HP @ 3 Phase - 480V	400 hp
Enclosure NEMA Rating	No Enclosure
Frame / Series / Class / Code	TeSys
Hz	40/400
Standards	CSA, UL Listed
Series	TeSys N
Auxiliary Contact Form	1NO
Product Certifications	UL Listed \|\| CSA
Auxiliary Contact Composition	1 NO
Product Or Component Type	contactor
Nema Degree Of Protection	not rated (open device)
Electrical Connection	lugs ordered separately
Phase	Three
Poles Description	3P
[Ue] Rated Operational Voltage	600 V AC
[Uc] Control Circuit Voltage	120 V AC
Control Circuit	common control circuit
Line Rated Current	540 A
Maximum Horse Power Rating	150 hp 200 V AC \|\| 200 hp 230 V AC \|\| 400 hp 460 V AC \|\| 400 hp 575 V AC
Contactor Application	non-reversing
Horsepower @ Three Phase - 480V AC	400 hp
Maximum Voltage Rating	600V AC
Full Load Current - Inductive	540 A
Number of Auxillary Contacts	1
Coil Voltage	120V AC
Contactor Style	NEMA
Reversing Capability	Non-Reversing
NEMA Enclosure Rating	No Enclosure
Frequency	50/60 Hz
Horsepower @ Single Phase - 240V AC	200 hp
Embedded Surge Suppressor	No
Includes Auxiliary Contacts	Yes
Horsepower @ Three Phase - 240V AC	200 hp
Terminal Connection Type	Screw Clamp Terminals
Horsepower @ Three Phase - 208V AC	150 hp
Horsepower @ Three Phase - 600V AC	400 hp

Description

NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

•TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 30A/600V, for North American market.
•To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V.
•Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory.
•Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately).
•Sold in lots of 12 units.
•Multi standards certified (UL recognized, CSA), Green Premium product (RoHS/REACh).
