Shop All Regenerative Blowers
Schmalz

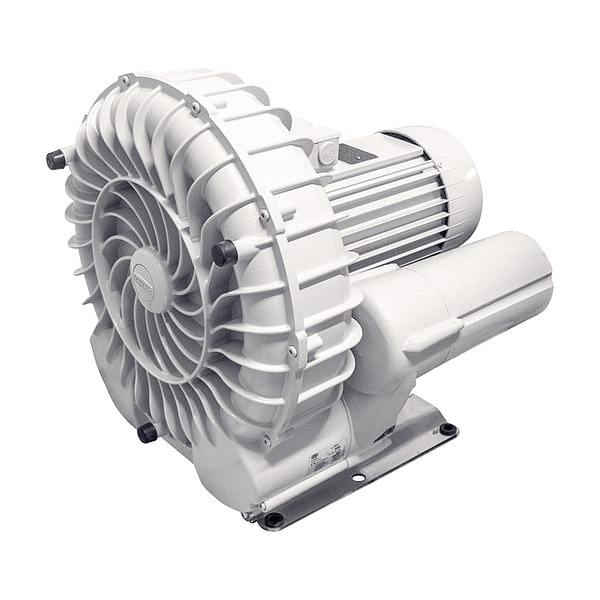

Vacuum Blower

product price: $10,109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 230/460V
  • Inlet Size 76 mm
  • Outlet Size 2 in
  • Phase Three
  • Frequency 60 Hz
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Inlet Size 76 mm
Outlet Size 2 in
Overall Length 496 mm
Overall Width 496 mm
Overall Height 523 mm

Details

Item Vacuum Blower
Voltage 230/460V
Phase Three
Frequency 60 Hz
Sound Level 76.7 dBA
Maximum Operating Pressure 1,000 mbar
Weight 62 kg
Series SB
Current Rating 16.5/8.25/17.1 A
Maximum Flow Rate 610 cu m/hr
Output Power 4.8 kW
Housing Material Die-Cast Aluminum
Standards CSA, UL Listed
Noise Level 76.7 dBA
Maximum Ambient Temperature 40 Degrees C
Enclosure Rating IP 55
Wattage 4.8 kW
Outlet Gender Female
Outlet Type G

Description

Vacuum Blower, Phase Three, Output Power 4.8 kW, Maximum Operating Pressure 1,000 mbar, Maximum Flow Rate 610 cu m/hr, Voltage 230/460V, Inlet Size 76 mm, Outlet Size 2 in, Outlet Type G, Outlet Gender Female, Current Rating 16.5/8.25/17.1 A, Frequency 60 Hz, Housing Material Die-Cast Aluminum
