Shop All Vacuum Pads
Schmalz

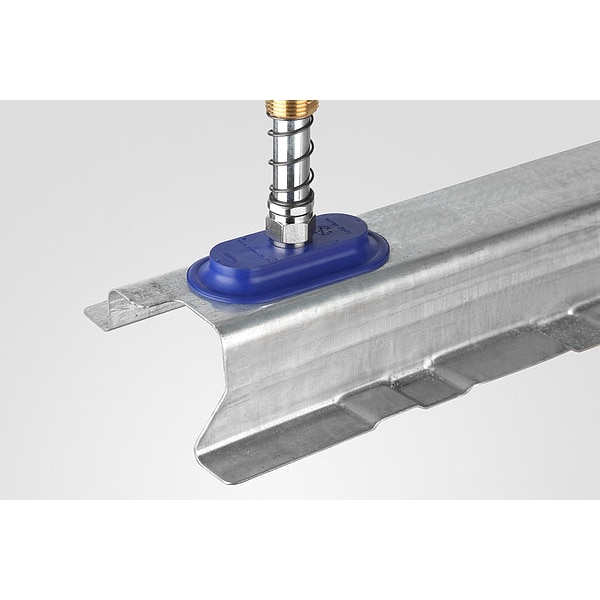

Oval Suction Cup for Sheet handling
Mfr # 10.01.05.00759
Zoro # G311471602
product price: $60.69
/ea
$60.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Flat
- Pad Material NBR
- Port Size 3/8 in
- Pad Height 28 mm
- Overall Height 37 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.05.00759
- Zoro # G311471602
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 3/8 in |
Pad Height | 28 mm |
Overall Height | 37 mm |
Pad Diameter | 40 mm, 80 mm |
Details
Pad Type | Flat |
Pad Material | NBR |
For Use With | Handling Sheet Metal |
Number of Folds | 0 |
Durometer | 45 A |
Adapter Material | Brass |
Maximum Vacuum Pressure | -0.6 bar |
Item | Oval Suction Cup for Sheet handling |
Series | SAOF |
Stroke | 4 mm |
Port Type | NPT |
Hardness | 45 Shore A |
Standards | DIN ISO 3302-1 M3 |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 45 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Overall Height 37 mm, Pad Color Blue, Pad Diameter 40 mm, 80 mm, Hardness 45 Shore A, Pad Height 28 mm, Pad Material NBR, Pad Type Flat Oval, Port Size 3/8 in, Port Type NPT, Series SAOF, Standards DIN ISO 3302-1 M3, Stroke 4 mm
