Shop All Vacuum Ejectors
Schmalz

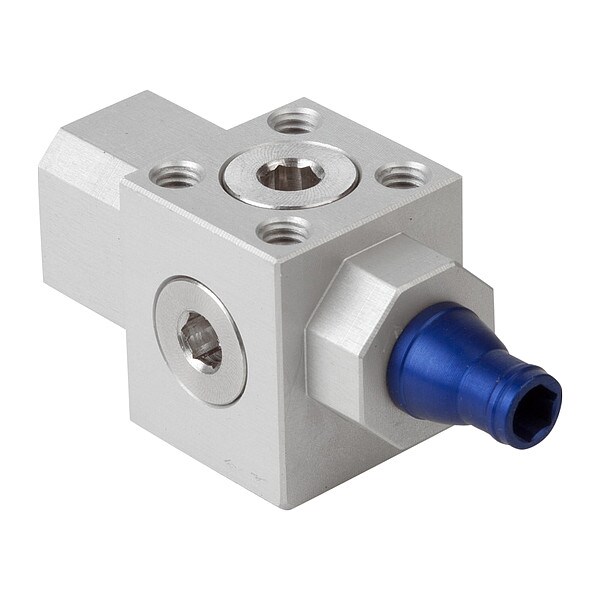

Multistage Ejector
Mfr # 10.02.01.01716
Zoro # G111471291
product price: $122.99
/ea
Free Shipping & Returns
$122.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pressure Port Size 1/8 in
- Vacuum Port Size 1 in
- Maximum Flow Rate 0.47 cfm
- Series SBP-HV-HF
- Overall Depth 19 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.02.01.01716
- Zoro # G111471291
- Country of Origin Germany
- Category Vacuum Ejectors
Dimensions
Pressure Port Size | 1/8 in |
Vacuum Port Size | 1 in |
Overall Depth | 19 mm |
Overall Length | 48 mm |
Overall Height | 22 mm |
Nozzle Diameter | 0.4 mm |
Details
Maximum Flow Rate | 0.47 cfm |
Series | SBP-HV-HF |
Maximum Vacuum Pressure | 6 bar |
Actuation Mechanism | Pressure |
Item | Multistage Ejector |
Minimum Vacuum Pressure | 2 bar |
Number of Stages | 2 |
Maximum Operating Temperature | 60 Degrees C |
Minimum Supply Pressure | 2 bar |
Weight | 28.7 g |
Minimum Operating Temperature | 0 Degrees C |
Vacuum Port Gender | Female |
Vacuum Port Type | NPT |
Maximum Supply Pressure | 6 bar |
Air Consumption | 0.23 cfm |
Pressure Port Gender | Female |
Pressure Port Type | G |
Description
Item Multistage Ejector, Actuation Mechanism Pressure, Air Consumption 0.23 cfm, Maximum Flow Rate 0.47 cfm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 2 bar, Minimum Vacuum Pressure 2 bar, Nozzle Diameter 0.4 mm, Number of Stages 2, Overall Depth 19 mm, Overall Height 22 mm, Overall Length 48 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in
