Shop All Vacuum Pads
Schmalz

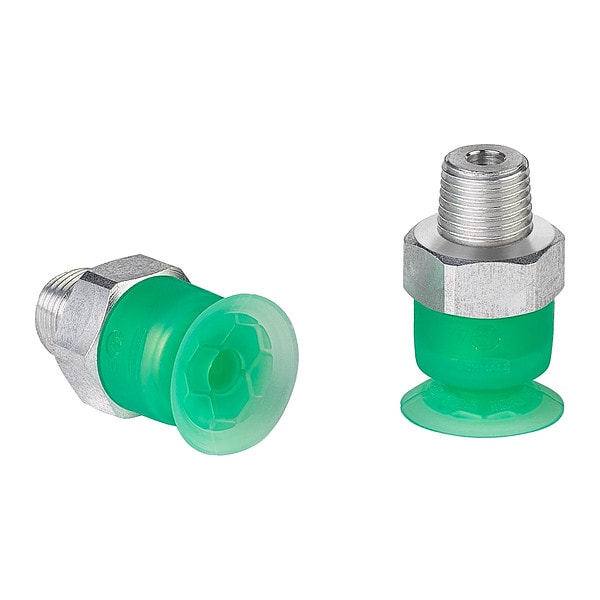

Flat Suction Cup for thin foils
Mfr # 10.01.01.14949
Zoro # G511471600
product price: $18.99
/ea
$18.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Flat
- Pad Material Silicone
- Port Size 1/8 in
- Pad Height 18.5 mm
- For Use With Thin Foils, Films & Paper
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.01.14949
- Zoro # G511471600
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/8 in |
Pad Height | 18.5 mm |
Overall Height | 26.7 mm |
Outside Diameter | 15 mm |
Pad Diameter | 16 mm |
Details
Pad Type | Flat |
Pad Material | Silicone |
For Use With | Thin Foils, Films & Paper |
Item | Flat Suction Cup for thin foils |
Weight | 5.2 g |
Series | SFF |
Standards | FDA Approved |
Port Type | NPT |
Number of Folds | 0 |
Stroke | 1 mm |
Hardness | 55 Shore A |
Durometer | 55 A |
Pad Color | Green |
Description
Item Vacuum Pad Assembly, Durometer 55 A, For Use With Thin Foils, Films & Paper, Number of Folds 0, Outside Diameter 15 mm, Overall Height 26.7 mm, Pad Color Green, Pad Diameter 16 mm, Hardness 55 Shore A, Pad Height 18.5 mm, Pad Material Food Grade Silicone Rubber, Pad Type Flat, Port Size 1/8 in, Port Type NPT, Series SFF, Standards FDA Approved, Stroke 1 mm, Weight 5.2 g
