Shop All Vacuum Pads
Schmalz

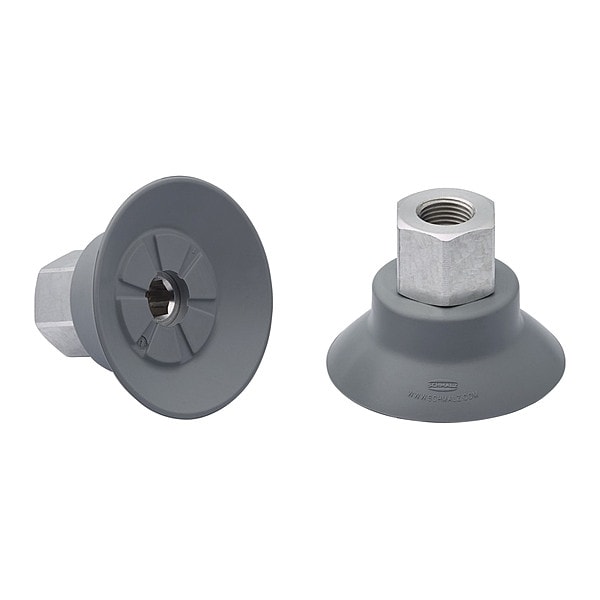

Flat Suction Cup
Mfr # 10.01.01.15089
Zoro # G111471581
product price: $14.35
/ea
$14.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Flat
- Pad Material NBR
- Port Size 1/8 in
- Pad Height 33.2 mm
- Hardness 55 Shore A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.01.15089
- Zoro # G111471581
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/8 in |
Pad Height | 33.2 mm |
Outside Diameter | 40 mm |
Pad Diameter | 44 mm |
Overall Height | 45.2 mm |
Details
Pad Type | Flat |
Pad Material | NBR |
Hardness | 55 Shore A |
Maximum Vacuum Pressure | -0.6 bar |
Series | SUF |
Port Type | NPT |
Number of Folds | 0 |
Durometer | 55 A |
Weight | 18.9 g |
Item | Flat Suction Cup |
Stroke | 4 mm |
Pad Color | Gray |
Description
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 40 mm, Overall Height 45.2 mm, Pad Color Gray, Pad Diameter 44 mm, Hardness 55 Shore A, Pad Height 33.2 mm, Pad Material NBR, Pad Type Flat, Port Size 1/8 in, Port Type NPT, Series SUF, Stroke 4 mm, Weight 18.9 g
