Shop All Vacuum Pads
Schmalz

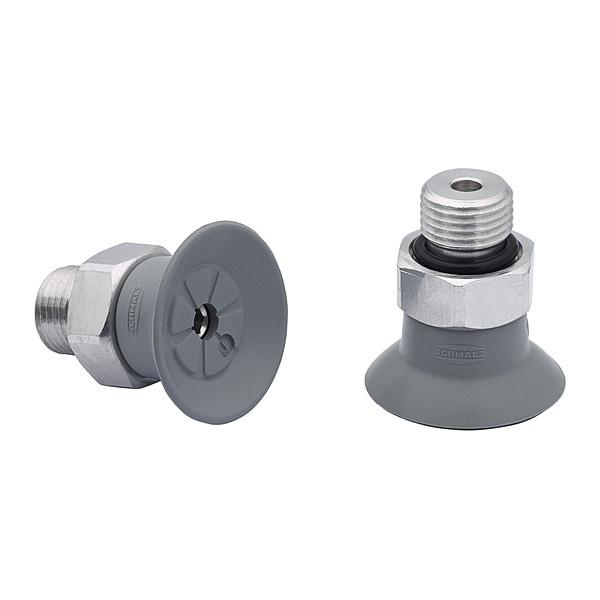

Flat Suction Cup
Mfr # 10.01.01.14116
Zoro # G111471499
product price: $12.85
/ea
$12.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Flat
- Pad Material NBR
- Pad Height 17.2 mm
- Port Size 1/8 in
- Overall Height 24.7 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.01.14116
- Zoro # G111471499
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Pad Height | 17.2 mm |
Port Size | 1/8 in |
Overall Height | 24.7 mm |
Outside Diameter | 25 mm |
Pad Diameter | 28.2 mm |
Details
Pad Type | Flat |
Pad Material | NBR |
Durometer | 55 A |
Number of Folds | 0 |
Port Type | G |
Item | Flat Suction Cup |
Series | SUF |
Stroke | 2.5 mm |
Weight | 9.7 g |
Maximum Vacuum Pressure | -0.6 bar |
Hardness | 55 Shore A |
Pad Color | Gray |
Description
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 25 mm, Overall Height 24.7 mm, Pad Color Gray, Pad Diameter 28.2 mm, Hardness 55 Shore A, Pad Height 17.2 mm, Pad Material NBR, Pad Type Flat, Port Size 1/8 in, Port Type G, Series SUF, Stroke 2.5 mm, Weight 9.7 g
