Schmalz

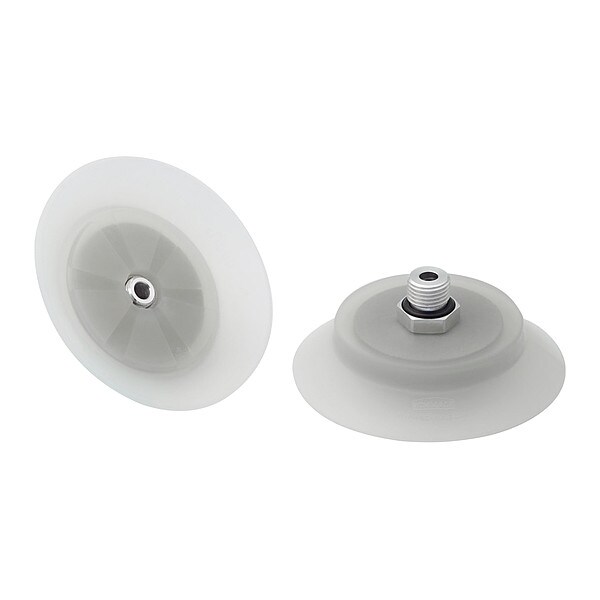

Flat Suction Cup

product price: $39.69
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Pad Type Flat
  • Pad Material Silicone
  • Pad Height 23.2 mm
  • Port Size 1/4 in
  • Pad Diameter 98.1 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pad Height 23.2 mm
Port Size 1/4 in
Pad Diameter 98.1 mm
Outside Diameter 90 mm
Overall Height 33.2 mm

Details

Pad Type Flat
Pad Material Silicone
Port Type G
Stroke 7 mm
Series SUF
Item Flat Suction Cup
Hardness 55 Shore A
Weight 98.1 g
Maximum Vacuum Pressure -0.6 bar
Standards FDA Approved
Number of Folds 0
Durometer 55 A
Pad Color Clear

Description

Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 90 mm, Overall Height 33.2 mm, Pad Color Clear, Pad Diameter 98.1 mm, Hardness 55 Shore A, Pad Height 23.2 mm, Pad Material Food Grade Silicone Rubber, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SUF, Standards FDA Approved, Stroke 7 mm, Weight 98.1 g
