Schmalz

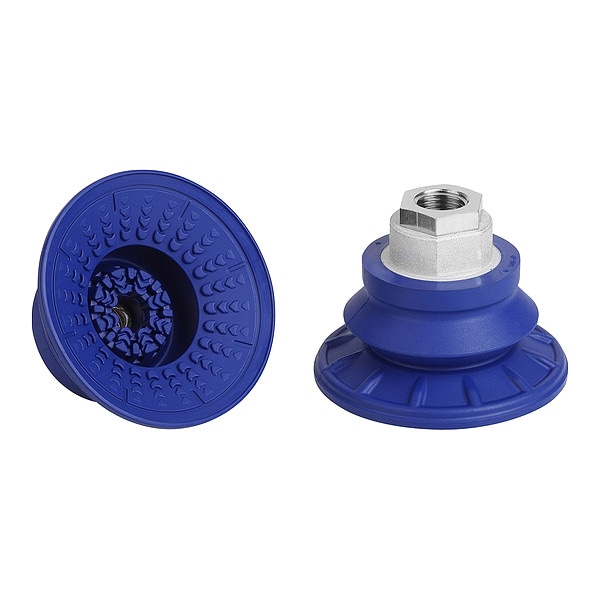

Bellow Suction cup for Sheet handling
Mfr # 10.01.06.00852
Zoro # G811471683
product price: $42.15
/ea
$42.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material NBR
- Port Size 1/4 in
- Pad Height 46.3 mm
- Standards DIN ISO 3302-1 M3
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00852
- Zoro # G811471683
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/4 in |
Pad Height | 46.3 mm |
Overall Height | 66.3 mm |
Outside Diameter | 60 mm |
Pad Diameter | 67 mm |
Details
Pad Type | Bellows |
Pad Material | NBR |
Item | Bellow Suction cup for Sheet handling |
Standards | DIN ISO 3302-1 M3 |
For Use With | Handling Sheet Metal |
Weight | 52.9 g |
Maximum Vacuum Pressure | -0.6 bar |
Durometer | 60 A |
Adapter Material | Nickel Plated |
Port Type | G |
Number of Folds | 1.5 |
Stroke | 14.5 mm |
Hardness | 60 Shore A |
Series | SAB |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 60 mm, Overall Height 66.3 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 46.3 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 14.5 mm, Weight 52.9 g
