Schmalz

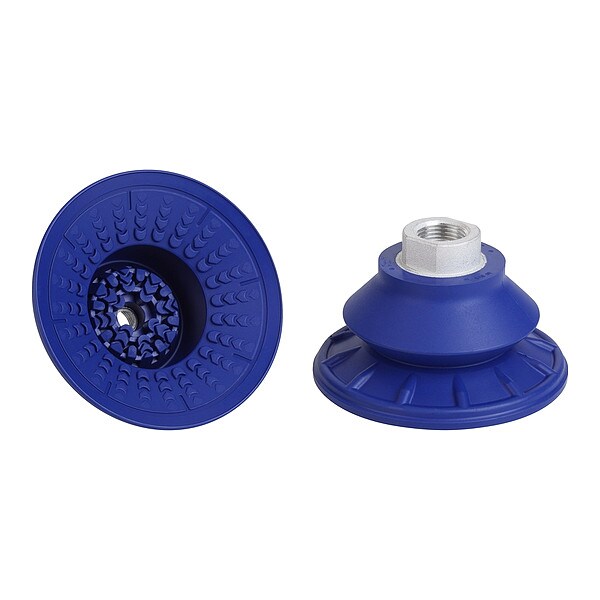

Bellow Suction cup for Sheet handling
Mfr # 10.01.06.00676
Zoro # G511854267
product price: $38.55
/ea
$38.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material NBR
- Pad Height 49.9 mm
- Port Size 3/8 in
- Outside Diameter 80 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00676
- Zoro # G511854267
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Pad Height | 49.9 mm |
Port Size | 3/8 in |
Outside Diameter | 80 mm |
Pad Diameter | 89 mm |
Overall Height | 64.9 mm |
Details
Pad Type | Bellows |
Pad Material | NBR |
Stroke | 22.1 mm |
Port Type | G |
Item | Vacuum Pad Assembly |
Standards | DIN ISO 3302-1 M3 |
Hardness | 60 Shore A |
Maximum Vacuum Pressure | -0.6 bar |
For Use With | Handling Sheet Metal |
Series | SAB |
Adapter Material | Aluminum |
Weight | 63 g |
Durometer | 60 A |
Number of Folds | 1.5 |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 64.9 mm, Pad Color Blue, Pad Diameter 89 mm, Hardness 60 Shore A, Pad Height 49.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 22.1 mm, Weight 63 g
