Schmalz

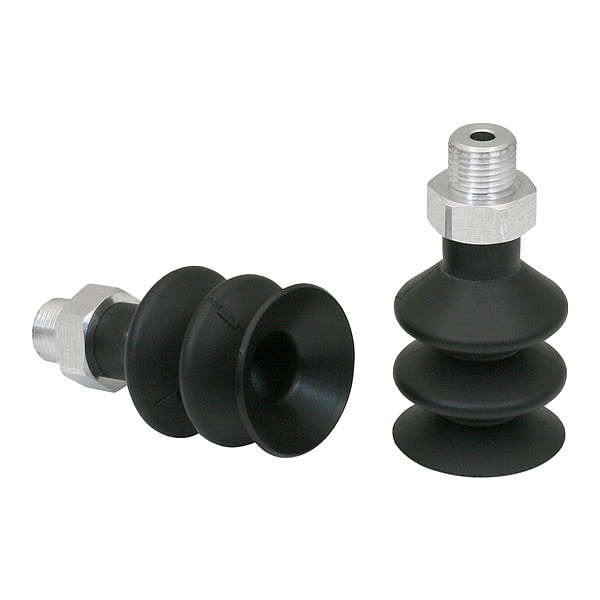

Bellow Suction Cup, 2.5
Mfr # 10.01.06.00334
Zoro # G911471583
product price: $19.15
/ea
$19.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material NBR
- Port Size 1/8 in
- Pad Height 40 mm
- Weight 8 g
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00334
- Zoro # G911471583
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/8 in |
Pad Height | 40 mm |
Outside Diameter | 25 mm |
Pad Diameter | 26 mm |
Overall Height | 47.5 mm |
Details
Pad Type | Bellows |
Pad Material | NBR |
Weight | 8 g |
Series | FSG |
Number of Folds | 2.5 |
Hardness | 55 Shore A |
Stroke | 18 mm |
Standards | DIN ISO 3302-1 M3 |
Adapter Material | Aluminum |
Item | Bellow Suction Cup, 2.5 |
Port Type | G |
Maximum Vacuum Pressure | -0.6 bar |
Durometer | 55 A |
Pad Color | Black |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 25 mm, Overall Height 47.5 mm, Pad Color Black, Pad Diameter 26 mm, Hardness 55 Shore A, Pad Height 40 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/8 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 18 mm, Weight 8 g
