Shop All Vacuum Pads
Schmalz

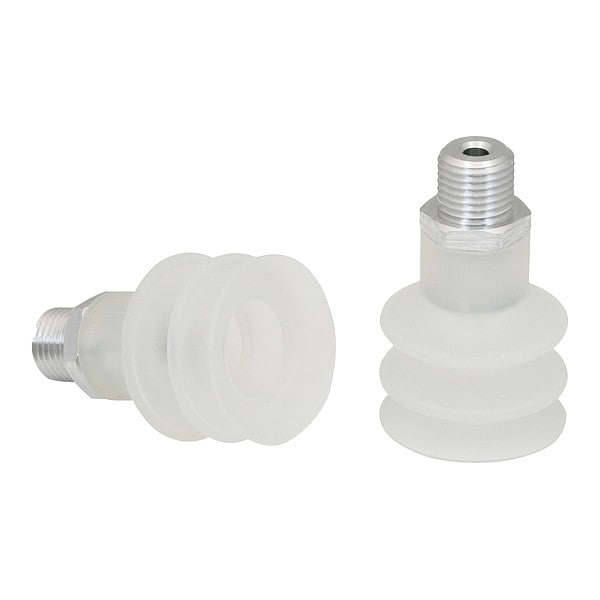

Bellow Suction Cup, 2.5
Mfr # 10.01.06.00044
Zoro # G311938488
product price: $25.55
/ea
$25.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Multi-Bellows
- Pad Material Food Grade Silicone Rubber
- Pad Height 41.5 mm
- Port Size 1/4 in
- Port Type G
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00044
- Zoro # G311938488
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Pad Height | 41.5 mm |
Port Size | 1/4 in |
Overall Height | 52.5 mm |
Outside Diameter | 32 mm |
Pad Diameter | 33.5 mm |
Details
Pad Type | Multi-Bellows |
Pad Material | Food Grade Silicone Rubber |
Port Type | G |
Series | FSG |
Maximum Vacuum Pressure | -0.6 bar |
Weight | 17 g |
Number of Folds | 2.5 |
Standards | DIN ISO 3302-1 M3, FDA Approved |
Hardness | 55 Shore A |
Adapter Material | Aluminum |
Durometer | 55 A |
Stroke | 15 mm |
Pad Color | Clear |
Item | Vacuum Pad Assembly |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 32 mm, Overall Height 52.5 mm, Pad Color Clear, Pad Diameter 33.5 mm, Hardness 55 Shore A, Pad Height 41.5 mm, Pad Material Food Grade Silicone Rubber, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 15 mm, Weight 17 g
