Shop All Vacuum Pads
Schmalz

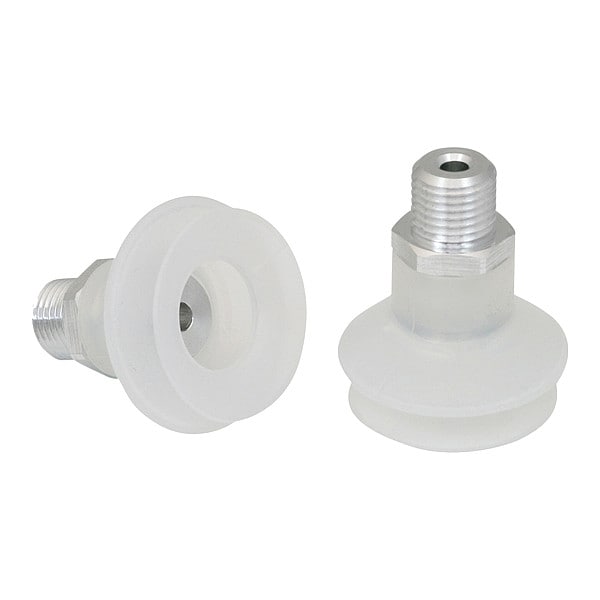

Bellow Suction Cup, 1.5
Mfr # 10.01.06.00091
Zoro # G511471273
product price: $25.79
/ea
$25.79
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material Silicone
- Port Size 1/4 in
- Pad Height 31 mm
- Number of Folds 1.5
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00091
- Zoro # G511471273
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/4 in |
Pad Height | 31 mm |
Overall Height | 42 mm |
Pad Diameter | 38 mm |
Outside Diameter | 33 mm |
Details
Pad Type | Bellows |
Pad Material | Silicone |
Number of Folds | 1.5 |
Standards | DIN ISO 3302-1 M3, FDA Approved |
Stroke | 9 mm |
Series | FSGA |
Weight | 16 g |
Adapter Material | Aluminum |
Durometer | 55 A |
Port Type | G |
Item | Bellow Suction Cup, 1.5 |
Hardness | 55 Shore A |
Maximum Vacuum Pressure | -0.6 bar |
Pad Color | Clear |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 33 mm, Overall Height 42 mm, Pad Color Clear, Pad Diameter 38 mm, Hardness 55 Shore A, Pad Height 31 mm, Pad Material Food Grade Silicone Rubber, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, FDA Approved, Stroke 9 mm, Weight 16 g
