Shop All Vacuum Pads
Schmalz

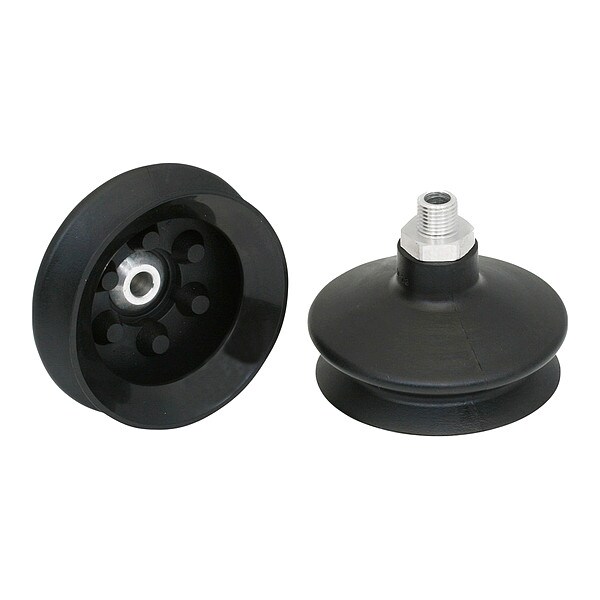

Bellow Suction Cup, 1.5
Mfr # 10.01.06.00084
Zoro # G511938479
product price: $43.85
/ea
$43.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material NBR
- Port Size 1/4 in
- Pad Height 53 mm
- Pad Diameter 84.5 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00084
- Zoro # G511938479
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/4 in |
Pad Height | 53 mm |
Pad Diameter | 84.5 mm |
Overall Height | 64 mm |
Outside Diameter | 78 mm |
Details
Pad Type | Bellows |
Pad Material | NBR |
Stroke | 16 mm |
Weight | 71 g |
Hardness | 55 Shore A |
Standards | DIN ISO 3302-1 M3 |
Item | Vacuum Pad Assembly |
Durometer | 55 A |
Number of Folds | 1.5 |
Port Type | G |
Pad Color | Black |
Series | FSGA |
Adapter Material | Aluminum |
Maximum Vacuum Pressure | -0.6 bar |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 78 mm, Overall Height 64 mm, Pad Color Black, Pad Diameter 84.5 mm, Hardness 55 Shore A, Pad Height 53 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 16 mm, Weight 71 g
