Shop All Vacuum Pads
Schmalz

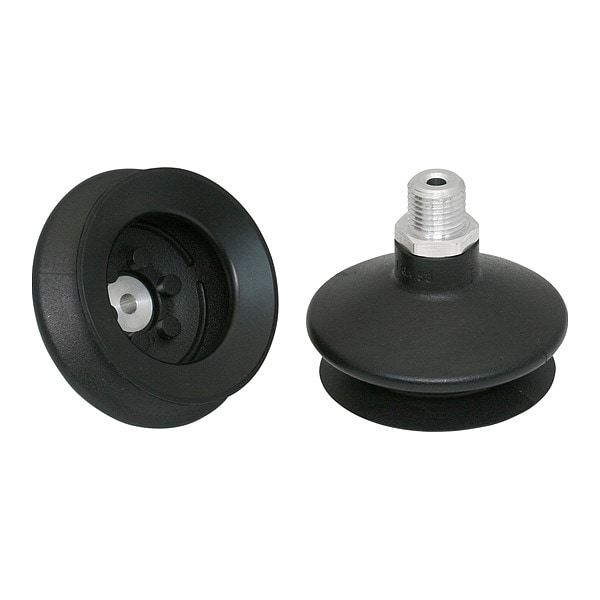

Bellow Suction Cup, 1.5
Mfr # 10.01.06.00083
Zoro # G711938477
product price: $29.35
/ea
$29.35
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Bellows
- Pad Material NBR
- Pad Height 38 mm
- Port Size 1/4 in
- Durometer 55 A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.06.00083
- Zoro # G711938477
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Pad Height | 38 mm |
Port Size | 1/4 in |
Outside Diameter | 53 mm |
Overall Height | 49 mm |
Pad Diameter | 60 mm |
Details
Pad Type | Bellows |
Pad Material | NBR |
Durometer | 55 A |
Item | Vacuum Pad Assembly |
Port Type | G |
Maximum Vacuum Pressure | -0.6 bar |
Weight | 27 g |
Standards | DIN ISO 3302-1 M3 |
Hardness | 55 Shore A |
Stroke | 15 mm |
Number of Folds | 1.5 |
Series | FSGA |
Adapter Material | Aluminum |
Pad Color | Black |
Description
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 53 mm, Overall Height 49 mm, Pad Color Black, Pad Diameter 60 mm, Hardness 55 Shore A, Pad Height 38 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 15 mm, Weight 27 g
