Schmalz

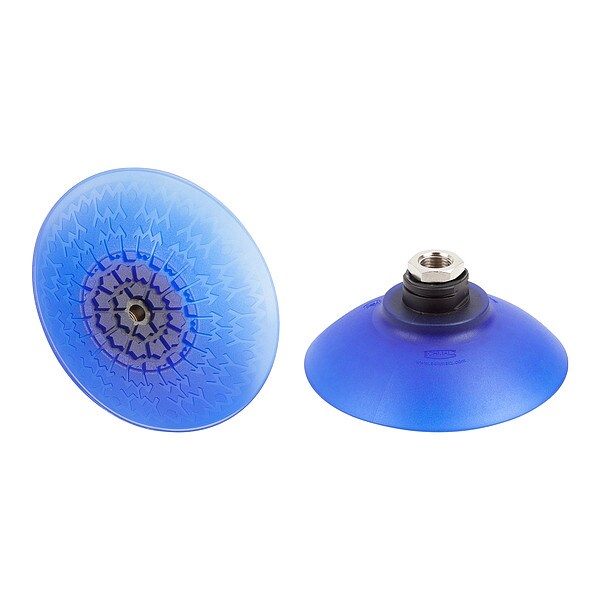

Bell Suction Cup for Sheet handling
Mfr # 10.01.19.00184
Zoro # G811471621
product price: $42.15
/ea
$42.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Deep
- Pad Material Elastodur ED
- Port Size 1/4 in
- Pad Height 46.5 mm
- Number of Folds 0
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.19.00184
- Zoro # G811471621
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 1/4 in |
Pad Height | 46.5 mm |
Outside Diameter | 100 mm |
Pad Diameter | 111.1 mm |
Overall Height | 61.5 mm |
Details
Pad Type | Deep |
Pad Material | Elastodur ED |
Number of Folds | 0 |
Stroke | 17.3 mm |
Durometer | 85 A |
Hardness | 85 Shore A |
For Use With | Handling Sheet Metal |
Series | SAX |
Item | Bell Suction Cup for Sheet handling |
Port Type | G |
Weight | 64.3 g |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 100 mm, Overall Height 61.5 mm, Pad Color Blue, Pad Diameter 111.1 mm, Hardness 85 Shore A, Pad Height 46.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 1/4 in, Port Type G, Series SAX, Stroke 17.3 mm, Weight 64.3 g
