Schmalz

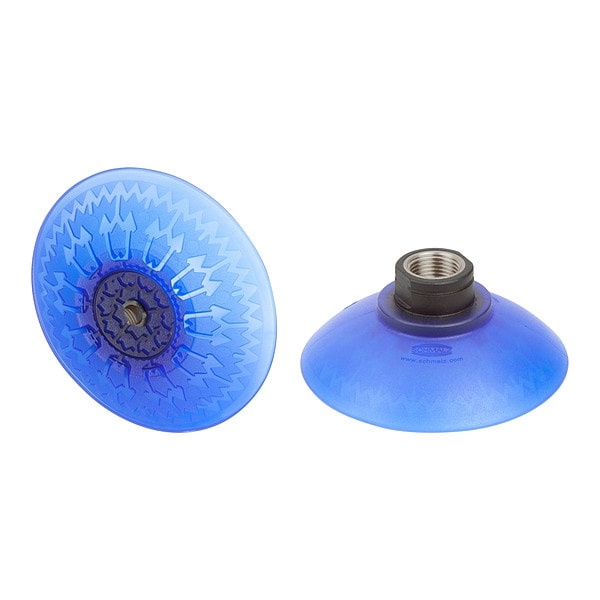

Bell Suction Cup for Sheet handling
Mfr # 10.01.19.00145
Zoro # G511471679
product price: $36.99
/ea
$36.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Deep
- Pad Material Elastodur ED
- Port Size 3/8 in
- Pad Height 34.5 mm
- Hardness 85 Shore A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Schmalz
- MFR # 10.01.19.00145
- Zoro # G511471679
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Port Size | 3/8 in |
Pad Height | 34.5 mm |
Overall Height | 46.5 mm |
Outside Diameter | 80 mm |
Pad Diameter | 92.2 mm |
Details
Pad Type | Deep |
Pad Material | Elastodur ED |
Hardness | 85 Shore A |
Weight | 35 g |
Series | SAX |
Number of Folds | 0 |
Stroke | 13.9 mm |
Item | Bell Suction Cup for Sheet handling |
Durometer | 85 A |
Port Type | NPT |
For Use With | Handling Sheet Metal |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 46.5 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 34.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type NPT, Series SAX, Stroke 13.9 mm, Weight 35 g
